03453LF2XP

03453LF2XP

Obsolete
LITTELFUSE

ACS INTL 3AG PANEL MOUNT FUSEHLDR/ RETAIL

Find alt
03453LF2XP

03453LF2XP

Obsolete
LITTELFUSE

ACS INTL 3AG PANEL MOUNT FUSEHLDR/ RETAIL

Find alt

Description

General part information

345 Series

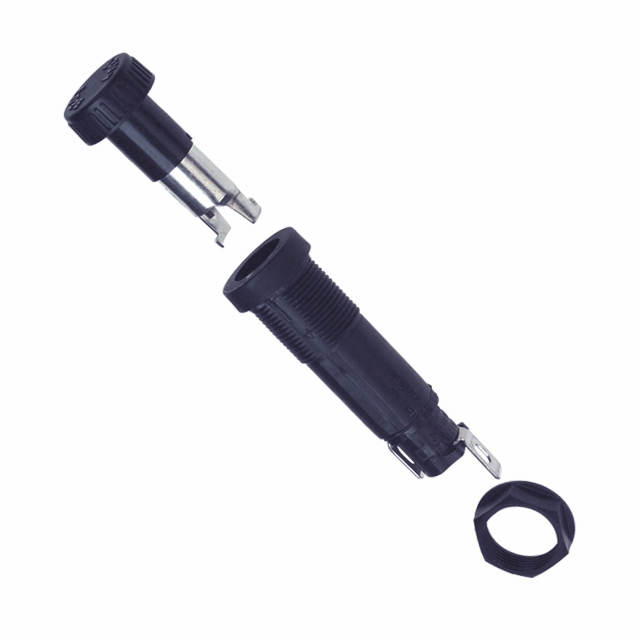

Compatible with AGC (3AG) glass fuses up to 20 amps, the ISF Series 250V Shock-Safe AGC (3AG) Panel-Mount Glass Fuse Holder features a low-profile body, finger-grip knob, and an anti-tease feature that eliminates circuit interruption when the knob is accidentally depressed.

Technical Specifications

Parameters and characteristics for this part

Specification03453LF2XP
Contact FinishTin
Contact MaterialCopper Alloy
Current Rating20 A
For Use With/Related Products3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Diameter0.25 in
Fuse Length1.26 in
Fuse TypeCartridge
Fuseholder TypeHolder
Mounting TypePanel Mount
Number of Circuits1
Quick Connect Size (0.187")0.187 in
Termination StyleQuick Connect
Voltage250 V
