000-27075

Active

AMPHENOL RF

CONN MHV CLAMP ST CABLE MOUNT RCP BERYLLIUM

Deep-Dive with AI

Search across all available documentation for this part.

000-27075

Active

AMPHENOL RF

CONN MHV CLAMP ST CABLE MOUNT RCP BERYLLIUM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-27075	000-27 Series

Adapter Series	-	BNC to BNC, Dual
Adapter Type	-	Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Silver	Silver
Connector Style	MHV	MHV
Connector Type	Female Socket, Jack	Receptacle, Female Socket, Jack
Contact Termination	Solder	Turret, Solder Cup, Solder
Conversion Type	-	Same Series
Convert From (Adapter End)	-	BNC Jack, Female Socket
Convert To (Adapter End)	-	BNC Plug, Male Pin (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Extended Insulation
Frequency - Max	-	4 - 50 GHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Impedance	-	50 Ohms

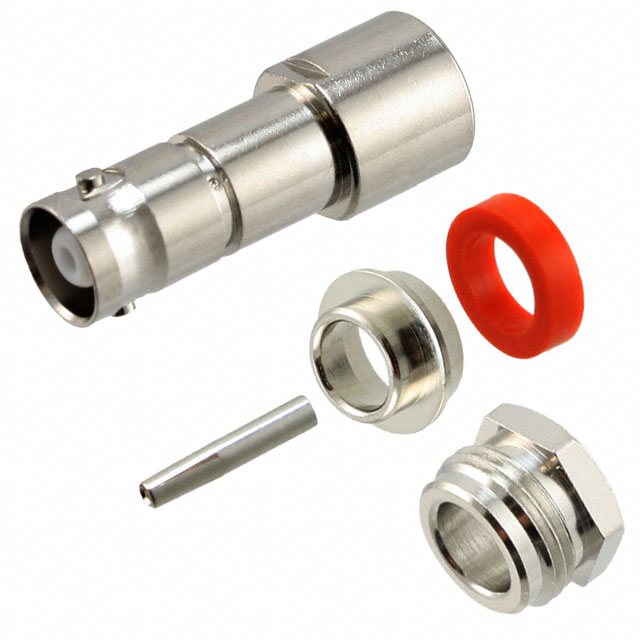

Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp	1 Nut, 1 Connector, 1 Lockwasher, 1 Clamp, 1 Gasket, 1 Contact, 1 Braid Clamp
Ingress Protection	Weatherproof	Weatherproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut, Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Solder, Clamp
Style	-	T-Shape
Voltage Rating	-	5000 V

000-27 Series

CONN MHV 0HZ TO 4GHZ SOLDER TURRET ST PANEL MOUNT RCP SILVER

Part	Number of Ports	Center Contact Plating	Contact Termination	Mating Cycles	Ingress Protection	Mounting Feature	Body Material	Connector Style	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Finish	Housing Color	Impedance	Includes	Shield Termination	Fastening Type	Connector Type	Conversion Type	Mounting Type	Convert To (Adapter End)	Adapter Series	Impedance	Convert From (Adapter End)	Frequency - Max [Max]	Adapter Type	Style	Voltage Rating	Features	Cable Group
AMPHENOL RF 000-27025	1	Silver	Turret	500	Weatherproof	Bulkhead - Front Side Nut	Brass	MHV	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Nickel	Silver	Non-Constant	1 Connector, 1 Lockwasher, 1 Nut	Solder	Bayonet Lock	Female Socket, Receptacle
AMPHENOL RF 000-27750		Silver					Brass		Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper, Brass	Nickel					Bayonet Lock		Same Series	Free Hanging (In-Line)	BNC Plug, Male Pin (2)	BNC to BNC, Dual	50 Ohms	BNC Jack, Female Socket	4 GHz	Plug to Jack	T-Shape
AMPHENOL RF 000-27000	1	Silver	Solder Cup	500	Weatherproof	Flange	Brass	MHV	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Nickel	Silver	Non-Constant		Solder	Bayonet Lock	Female Socket, Receptacle							50 GHz			5000 V	Extended Insulation
AMPHENOL RF 000-27075	1	Silver	Solder	500	Weatherproof		Brass	MHV	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Nickel	Silver	Non-Constant	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket	Clamp	Bayonet Lock	Female Socket, Jack		Free Hanging (In-Line)										140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 59.03
		10	$ 45.74
		25	$ 41.53
		50	$ 38.69
		100	$ 36.11
		250	$ 33.08

Description

General part information

000-27 Series

MHV Connector Jack, Female Socket Non-Constant Free Hanging (In-Line) Solder
