Description
General part information
RA4M915200L311

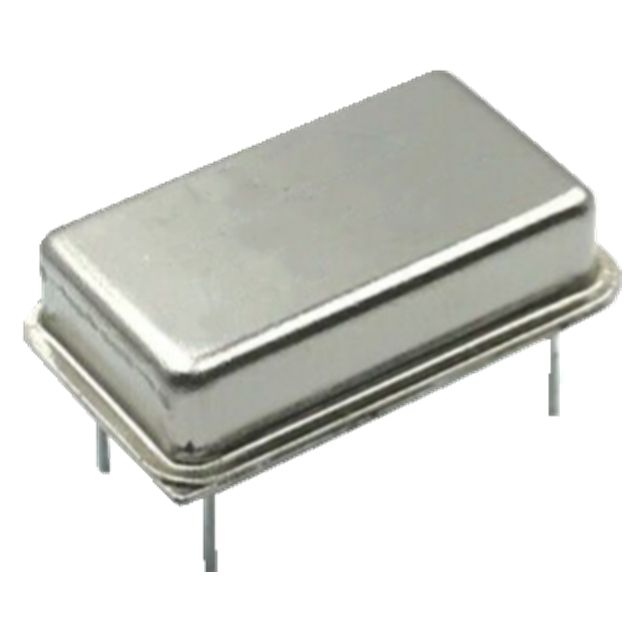

4.9152 MHz XO (Standard) TTL Oscillator 3.3V Tri-State (Output Enable) 14-DIP, 4 Leads (Full Size, Metal Can)
Technical Specifications
Parameters and characteristics for this part
| Specification | RA4M915200L311 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 30 mA |
| Frequency | 4.9152 MHz |
| Frequency Stability | 50 ppm |
| Function | Tri-State (Output Enable) |
| Height - Seated (Max) | 0.208 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | TTL |
| Package Leads | 4 Leads |
| Package Name | 14-DIP |
| Size / Dimension Length | 0.803 in |
| Size / Dimension Width | 0.504 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
