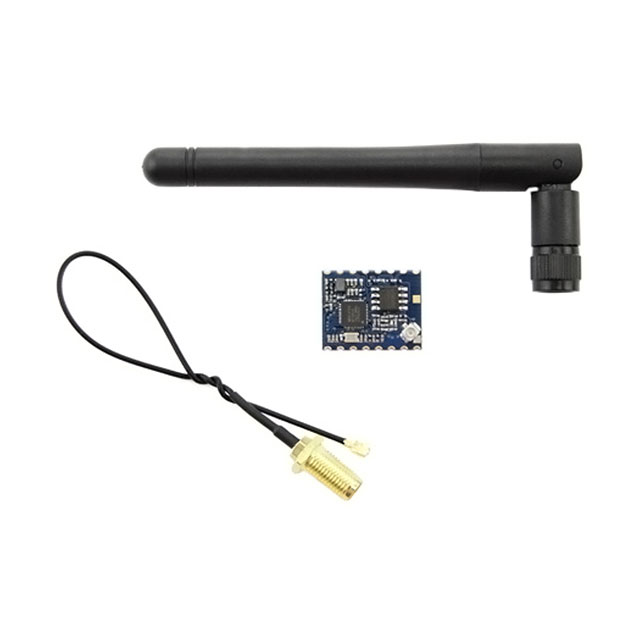

114990086
ObsoleteSeeed Technology Co., Ltd
RF TXRX MODULE WIFI SMD
114990086
ObsoleteSeeed Technology Co., Ltd
RF TXRX MODULE WIFI SMD
Description
General part information
114990086
WiFi 802.11b/g/n Transceiver Module 2.4GHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 114990086 |
|---|---|
| Current - Receiving | 151 mA |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 16-SMD Module |
| Protocol | 802.11n, 802.11b, 802.11g |
| RF Family/Standard | WiFi |
| Serial Interfaces | SPI, UART |
| Utilized IC / Part | MT7681 |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
