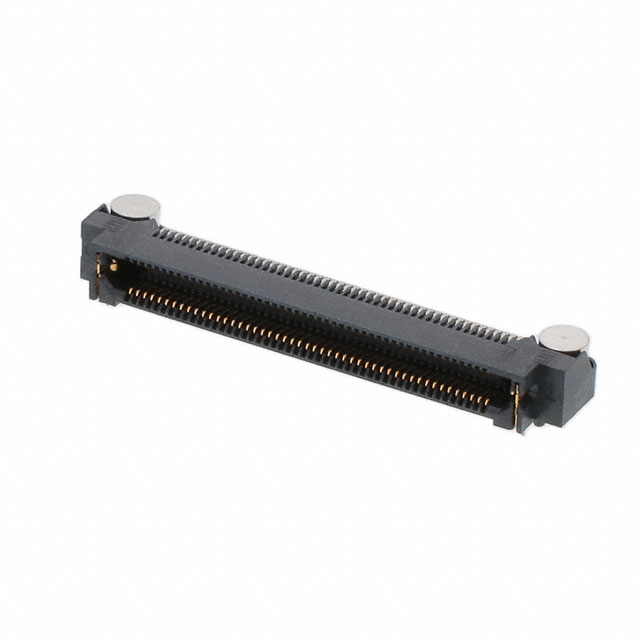

ERF8-049-01-L-D-RA-L-TR - ERF8-049-01-L-D-RA-L-TR

ERF8-049-01-L-D-RA-L-TR

Active
Samtec Inc.

CONN SOCKET 98POS R/A SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03ERF8 Series Other Related Documents 01+1
ERF8-049-01-L-D-RA-L-TR - ERF8-049-01-L-D-RA-L-TR

ERF8-049-01-L-D-RA-L-TR

Active
Samtec Inc.

CONN SOCKET 98POS R/A SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03ERF8 Series Other Related Documents 01+1

Technical Specifications

Parameters and characteristics for this part

SpecificationERF8-049-01-L-D-RA-L-TR
Connector TypeSocket, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesBoard Guide, Mounting Flange, Latches
Height Above Board6.25 mm
Height Above Board0.246 in
Mounting TypeSurface Mount, Right Angle
Number of Positions98
Number of Rows2
Pitch [x]0.8 mm
Pitch [x]0.031 in

ERF8-049 Series

PartMounting TypeNumber of PositionsConnector TypePitch [x]Pitch [x]Number of RowsContact FinishContact Finish ThicknessContact Finish ThicknessHeight Above BoardHeight Above BoardFeaturesMated Stacking HeightsHeight Above Board [z]Height Above Board [z]
Samtec Inc.
ERF8-049-01-L-D-EM4-TR
Board Edge
Straddle Mount
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
10 Áin
0.25 Ám
Samtec Inc.
ERF8-049-01-L-D-RA-EGP-TR
Surface Mount
Right Angle
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
10 Áin
0.25 Ám
6.25 mm
0.246 in
Board Guide
Mounting Flange
Samtec Inc.
ERF8-049-01-L-D-RA-L-TR
Surface Mount
Right Angle
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
10 Áin
0.25 Ám
6.25 mm
0.246 in
Board Guide
Latches
Mounting Flange
Samtec Inc.
ERF8-049-05.0-L-DV-TR
Surface Mount
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
10 Áin
0.25 Ám
5.33 mm
0.21 in
Board Guide
7 mm
10 mm
13 mm
14 mm
20 mm
Samtec Inc.
ERF8-049-01-S-D-RA-EGP-TR
Surface Mount
Right Angle
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
30 Áin
0.76 Ám
6.25 mm
0.246 in
Board Guide
Mounting Flange
Samtec Inc.
ERF8-049-07.0-L-DV-EGP-TR
Surface Mount
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
10 Áin
0.25 Ám
Board Guide
9 mm
12 mm
15 mm
16 mm
22 mm
0.285 in
7.24 mm
Samtec Inc.
ERF8-049-05.0-L-DV-L-TR
Surface Mount
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
10 Áin
0.25 Ám
5.33 mm
0.21 in
Board Guide
Latches
7 mm
10 mm
13 mm
14 mm
20 mm
Samtec Inc.
ERF8-049-03-S-D-RA-L-TR
Surface Mount
Right Angle
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
30 Áin
0.76 Ám
6.25 mm
0.246 in
Board Guide
Latches
Mounting Flange
Samtec Inc.
ERF8-049-01-S-D-RA-TR
Surface Mount
Right Angle
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
30 Áin
0.76 Ám
6.25 mm
0.246 in
Board Guide
Mounting Flange
Samtec Inc.
ERF8-049-05.0-S-DV-L-TR
Surface Mount
98
Outer Shroud Contacts
Socket
0.8 mm
0.031 in
2
Gold
30 Áin
0.76 Ám
5.33 mm
0.21 in
Board Guide
Latches
7 mm
10 mm
13 mm
14 mm
20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 11.41
10$ 10.43
25$ 9.74
50$ 9.61
100$ 8.44
Tape & Reel (TR) 200$ 8.44
600$ 7.49

Description

General part information

ERF8-049 Series

98 Position Connector Socket, Outer Shroud Contacts Surface Mount, Right Angle Gold
