PCIT40-151M-RC
ActiveAllied Components International

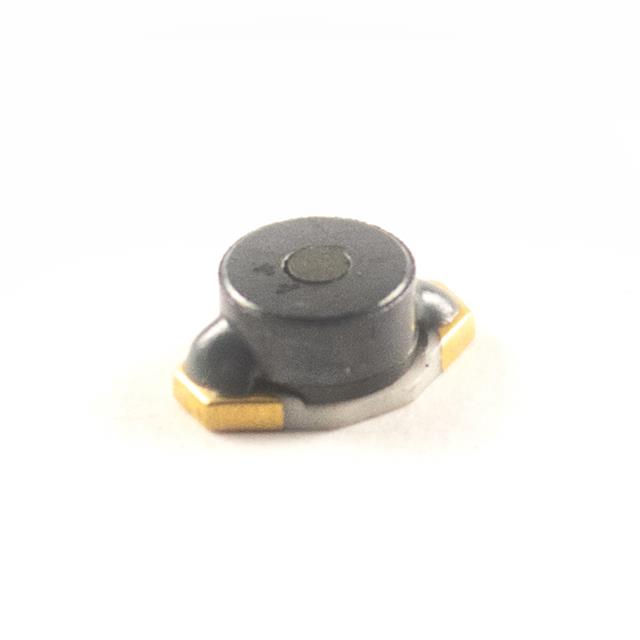

150UH +/-20% POWER CHIP INDUCTOR
PCIT40-151M-RC
ActiveAllied Components International
150UH +/-20% POWER CHIP INDUCTOR
Description
General part information
PCIT40-151M-RC
150 µH Shielded Inductor 600 mA 360mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCIT40-151M-RC |
|---|---|
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 360 mOhm |
| Frequency - Self Resonant | 8 MHz |
| Height - Seated (Max) | 0.2 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.51 in |
| Size / Dimension Width | 0.37 in |
| Tolerance | 20 % |
