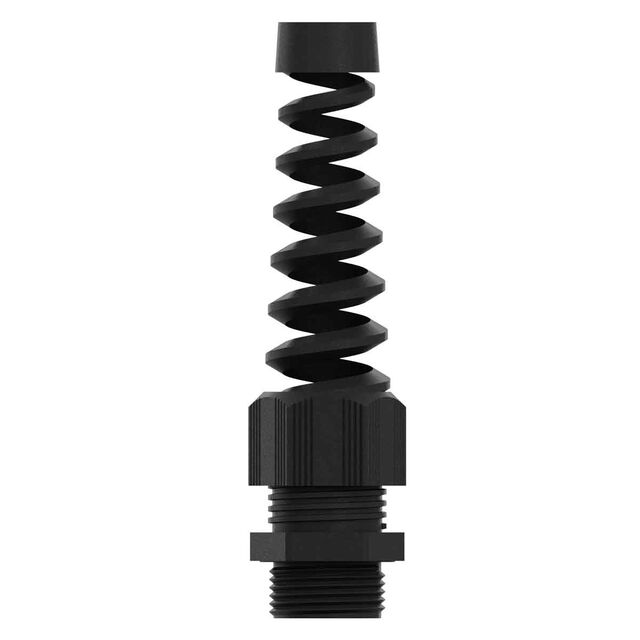

FMB-20RCL

Active

SAB North America

CORD GRIP M20 BLACK CR: 7 - 12

Search across all available documentation for this part.

Active

SAB North America

CORD GRIP M20 BLACK CR: 7 - 12

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMB-20RCL	FMB-20 Series

Color	Black	Black
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	12 mm
Outside Cable Diameter (Min)	7 mm	7 mm
Outside Cable Diameter (Min)	-	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in	0.236 - 0.276 in
Panel Hole Size	0.787 in	0.787 in
Panel Hole Size	20 mm	20 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M20x1.5	M20x1.5
Type	Cable Gland	Cable Gland

CORD GRIP M20 BLACK CR: 7 - 12

Part	Color	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]
SAB North America FMB-20RCL	Black	0.591 in	15 mm	0.787 in	20 mm	100 °C	-20 C	Cable Gland	7 mm	0.276 in	IP68 - Dust Tight, Waterproof	0.472 in	12 mm	M20x1.5
SAB North America FMB-20L	Black	0.591 in	15 mm	0.787 in	20 mm	100 °C	-20 C	Cable Gland		0.236 in	IP68 - Dust Tight, Waterproof	0.472 in	12 mm	M20x1.5	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M20x1.5 Black
