Description
General part information

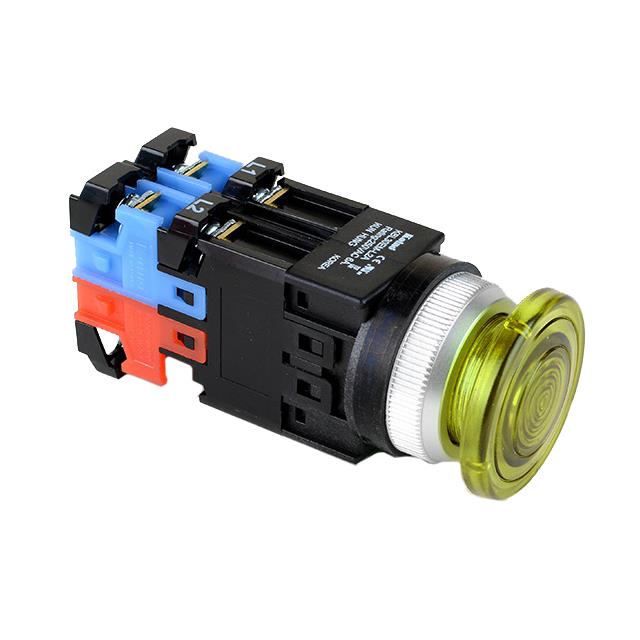

KBL30WEA-L3A-Y
SWITCH E-STOP 5A 250V
Technical Specifications
Parameters and characteristics for this part
| Specification | KBL30WEA-L3A-Y |
|---|---|
| Circuit | SPST-NC, SPST-NO |
| Current Rating | 3 A, 5 A |
| Features | Illuminated (Yellow) |
| Illumination Voltage (Nominal) | 230 VAC |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 25 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
