1300621040

Active

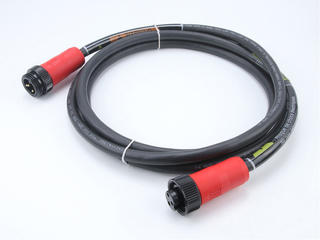

BRADPOWER A-SIZE (7/8"–M22) DOUBLE-ENDED CORDSET, 3 POLES, MALE (STRAIGHT) TO FEMALE (STRAIGHT), 14 AWG, BLACK TPE CABLE, 12.0M (39.37') LENGTH

Find alt

Alpha

1300621040

Active

Molex

BRADPOWER A-SIZE (7/8"–M22) DOUBLE-ENDED CORDSET, 3 POLES, MALE (STRAIGHT) TO FEMALE (STRAIGHT), 14 AWG, BLACK TPE CABLE, 12.0M (39.37') LENGTH

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

130062 Series

BradPower A-Size (7/8"–M22) Double-Ended Cordset, 4 Poles, Tri-Key, Male (Straight) to Female (Straight), 14 AWG, Black TPE Cable, 8.0m (26.25') Length

Technical Specifications

Parameters and characteristics for this part

Specification	1300621040

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3 positions
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert (Size)	0.875 in
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	3
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert (Size)	0.875 in
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Thermoplastic Elastomer (TPE)
Cable Type	Round
Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	39.4 ft
Shielding	Unshielded
Usage	Industrial Environments

130062 Series

BradPower A-Size (7/8"–M22) Double-Ended Cordset, 4 Poles, Tri-Key, Male (Straight) to Female (Straight), 14 AWG, Black TPE Cable, 8.0m (26.25') Length

...

Part	Color	2nd Connector Gender	2nd Connector Type	1st Connector Gender	2nd Connector Number of Positions	Usage	Shielding	Cable Material	1st Connector Mounting Type	Cable Type	Assembly Configuration	2nd Connector Shell Size - Insert (Size)	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert (Size)	2nd Connector Mounting Type	1st Connector Type	1st Connector Number of Positions	2nd Connector Number of Positions Loaded	Length	1st Connector Shell Size - Insert (Thread)	2nd Connector Shell Size - Insert (Code)
Molex 1300620031	Gray	Female Sockets	Plug	Male Pins	3	Industrial Environments	Unshielded	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	3 positions	All	4.92 ft
Molex 1300621161	Black	Female Sockets	Plug	Male Pins	4		Unshielded	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Round	Standard	0.875 in			All	0.875 in	Free Hanging (In-Line)	Receptacle	4 positions	All	311.7 ft
Molex 1300620065	Gray	Female Sockets	Plug	Male Pins	3	Industrial Environments	Unshielded	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	3 positions	All	128 ft
Molex 1300620153
Molex 1300620001	Gray	Female Sockets	Plug	Male Pins	3	Industrial Environments	Unshielded	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	3 positions	All	9.84 ft
Molex 1300620302	Yellow	Female Sockets	Plug	Male Pins	4	Industrial Environments	Unshielded	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	4 positions	All	6.56 ft
Molex 1300621130	Black	Female Sockets	Plug	Male Pins	3	Industrial Environments	Unshielded	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	3 positions	All	111.5 ft
Molex 1300620247	Gray	Female Sockets	Plug	Male Pins	4	Industrial Environments	Unshielded	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	4 positions	All	23 ft
Molex 1300620283	Black	Female Sockets	Plug	Male Pins	4	Industrial Environments	Unshielded	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	4 positions	All	26.2 ft	M22	M22
Molex 1300621100	Black	Female Sockets	Plug	Male Pins	3	Industrial Environments	Unshielded	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Round	Standard	0.875 in	Dust Tight Waterproof	IP67	All	0.875 in	Free Hanging (In-Line)	Receptacle	3 positions	All	262.5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Drawing

1300621040 | Datasheet
