General part information

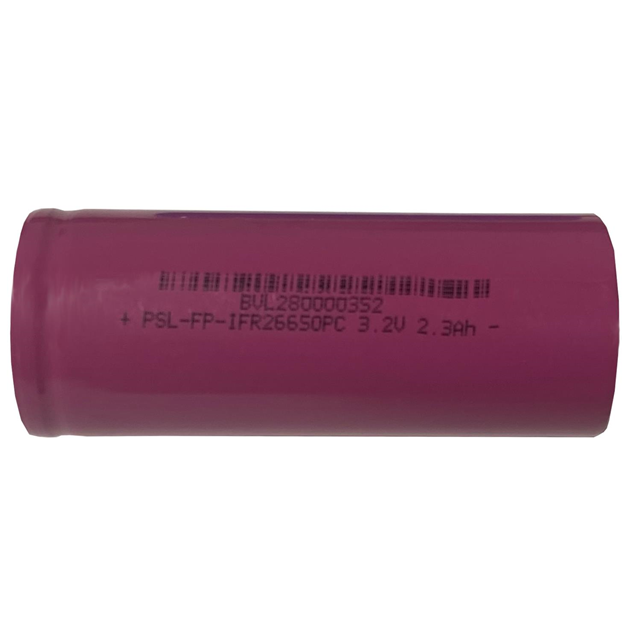

LiFePO4 - Lithium Iron Phosphate Battery LiCylCell;PSL-FP-26650, 3.2V2.3AH, Power Cell, 30C
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | PSL-FP-IFR26650PC | LFPCYLCEL Series |
|---|---|---|
| Battery Cell Size | - | 18650 |
| Battery Chemistry | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Capacity | 2.3 Ah | 1.5 - 3.4 Ah |
| Discharge Rate | 69 A | 4.5 - 69 A |
| Size / Dimension [diameter] | 25.1 mm | 0.72 - 25.1 mm |
| Size / Dimension [diameter] | 0.99 in | 0.99 in |
| Size / Dimension [z] | 65.5 mm | 2.56 - 65.5 mm |
| Size / Dimension [z] | 2.58 " | 2.58 " |
| Standard Charge Current | 4.6 A | 1.5 - 4.6 A |
| Termination Style | Button Top (Extending) | Button Top (Extending) |
| Voltage - Rated | 3.2 V | 3.2 V |
LiFePO4 - Lithium Iron Phosphate Battery LiCylCell;PSL-FP-26650, 3.2V2.3AH, Power Cell, 30C
| Part | Discharge Rate | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [z] | Voltage - Rated | Standard Charge Current | Capacity | Termination Style | Battery Chemistry | Battery Cell Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
Power Sonic PSL-FP-IFR26650EC | 10 A | 65.5 mm | 25.1 mm | 0.99 in | 2.58 " | 3.2 V | 3.4 A | 3.4 Ah | Button Top (Extending) | Lithium Iron Phosphate | |
Power Sonic PSL-FP-IFR18650EC | 4.5 A | 2.56 in, 65 mm | 0.72 in, 18.3 mm | 3.2 V | 1.5 A | 1.5 Ah | Button Top (Extending) | Lithium Iron Phosphate | 18650 | ||
Power Sonic PSL-FP-IFR26650PC | 69 A | 65.5 mm | 25.1 mm | 0.99 in | 2.58 " | 3.2 V | 4.6 A | 2.3 Ah | Button Top (Extending) | Lithium Iron Phosphate |
