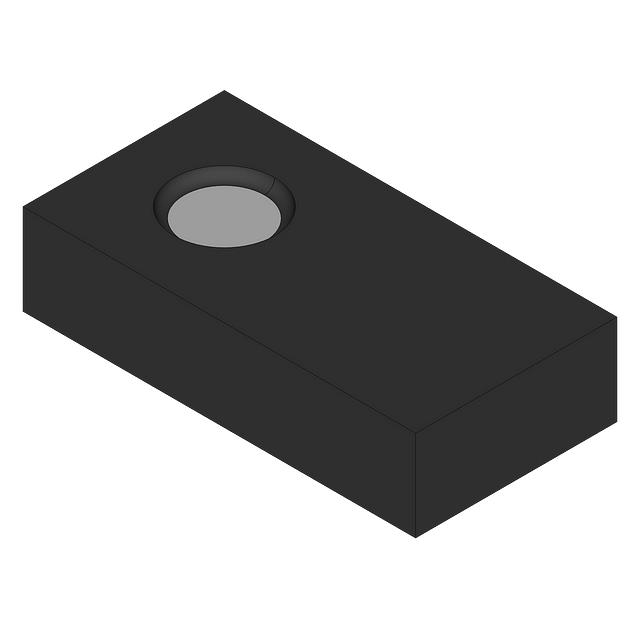

NXS0102GT115
ActiveNXP USA Inc.
IC BUS TRANSCEIVER NTSX2102 SER
NXS0102GT115
ActiveNXP USA Inc.
IC BUS TRANSCEIVER NTSX2102 SER
Description
General part information
NXS0102GT115
Voltage Level Translator Bidirectional 1 Circuit 2 Channel 24Mbps 8-XSON (1.95x1)
Technical Specifications
Parameters and characteristics for this part
| Specification | NXS0102GT115 |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 2 |
| Data Rate | 24 Mbps |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Tri-State, Open Drain, Push-Pull |
| Package / Case | 8-XFDFN |
| Package Length | 1.95 mm |
| Package Name | 8-XSON |
| Package Width | 1 mm |
| Translator Type | Voltage Level |
| Voltage - VCCA (Max) | 3.6 V |
| Voltage - VCCA (Min) | 1.65 V |
| Voltage - VCCB (Max) | 5.5 V |
| Voltage - VCCB (Min) | 2.3 V |
