CONN MINI BNC JACK STR 75OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MINI BNC JACK STR 75OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1274595-1

Body Finish	Nickel
Body Material	Stainless Steel
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Mini, BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	300 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN MINI BNC JACK STR 75OHM PCB

Part	Fastening Type	Center Contact Plating	Center Contact Material	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Housing Color	Connector Type	Connector Style	Contact Termination	Mounting Type	Impedance	Body Material	Frequency - Max [Max]	Number of Ports	Dielectric Material	Mating Cycles	Voltage Rating
TE Connectivity AMP Connectors 1274595-1	Bayonet Lock	Gold	Phosphor Bronze	Solder	85 °C	-40 °C	Nickel	Silver	Female Socket, Jack	BNC, Mini	Solder	Through Hole	75 Ohms	Stainless Steel	2 GHz	1	Polytetrafluoroethylene (PTFE)	500	300 VDC

General part information

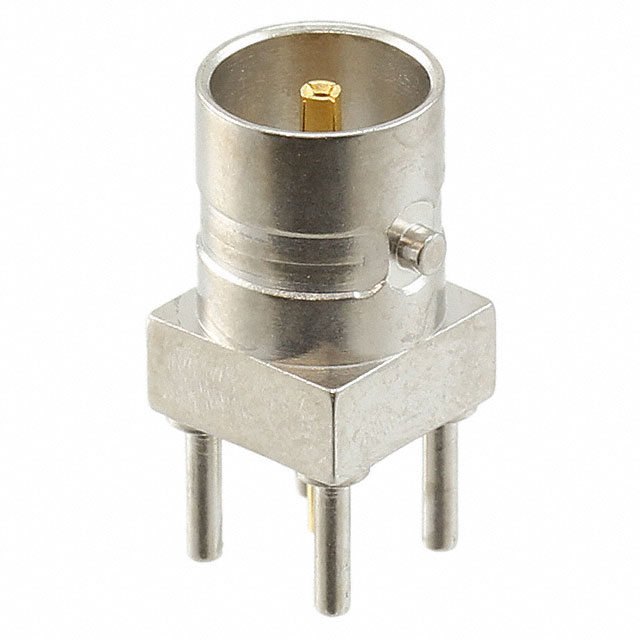

BNC, Mini Connector Jack, Female Socket 75 Ohms Through Hole Solder
