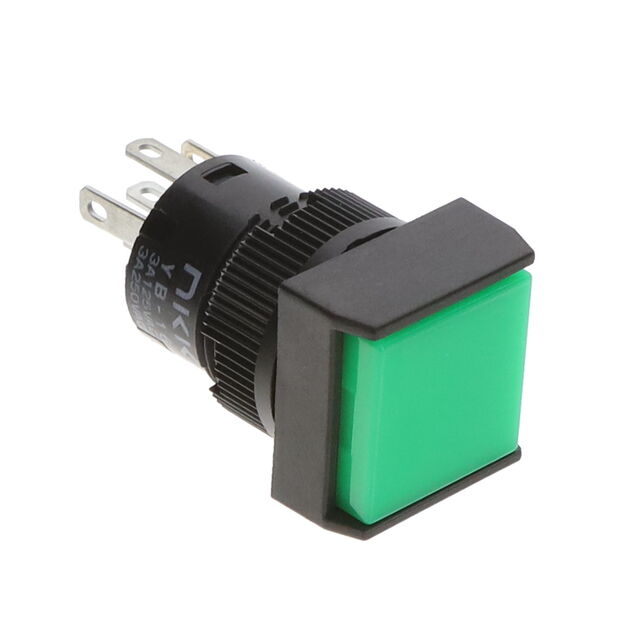

YB16SKW01-FB

Active

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB16SKW01-FB

Active

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB16SKW01-FB	YB16SK Series

Actuator Marking	No Marking	No Marking
Actuator Type	Button, Square	Button, Square, Plunger for Cap
Circuit	SPDT	SPDT
Color - Actuator/Cap	Green	Clear, Green, Clear (Red Filter/Diffuser), Clear (Yellow Filter/Diffuser), Red, Blue
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	100000 Cycles	100000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	-	Amber, LED, Red, Green, Blue, Green/Red, White
Illumination Voltage (Nominal)	-	1.9 - 24 VDC
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin, Solder Lug
Termination Style	2.8 mm	2.8 mm
Type	Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB16SK Series

PUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-ON, SQUARE, TRANSPARENT

Part	Switch Function	Mechanical Life	Actuator Marking	Termination Style	Termination Style	Termination Style	Illumination Voltage (Nominal)	Electrical Life	Mounting Type	Features	Actuator Type	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Type
NKK SWITCHES YB16SKW01-5D12-JB	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	12 VDC	100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	3 A	SPDT	Clear	16 mm	Amber, LED	125 V	50 °C	-25 °C	30 V	Illuminated, Standard
NKK SWITCHES YB16SKW01-5D24-JD	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	24 V	100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	3 A	SPDT	Clear	16 mm	Amber, LED	125 V	50 °C	-25 °C	30 V	Illuminated, Standard
NKK SWITCHES YB16SKG01-5C-JB	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	1.9 VDC	100000 Cycles	Panel Mount, Front		Button, Square	0.4 VA	SPDT	Clear	16 mm	LED, Red	28 V	50 °C	-25 °C	28 V	Illuminated, Standard
NKK SWITCHES YB16SKW01-6F-JB	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	3.3 VDC	100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	3 A	SPDT	Clear	16 mm	Green, LED	125 V	50 °C	-25 °C	30 V	Illuminated, Standard
NKK SWITCHES YB16SKG01-FB	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm		100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	0.4 VA	SPDT	Green	16 mm		28 V	70 °C	-25 °C	28 V	Standard
NKK SWITCHES YB16SKW01-6G-JB	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	3.6 VDC	100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	3 A	SPDT	Clear	16 mm	Blue, LED	125 V	50 °C	-25 °C	30 V	Illuminated, Standard
NKK SWITCHES YB16SKW01-5C-JC	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	1.9 VDC	100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	3 A	SPDT	Clear (Red Filter/Diffuser)	16 mm	LED, Red	125 V	50 °C	-25 °C	30 V	Illuminated, Standard
NKK SWITCHES YB16SKW01-5C24-JC	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	24 V	100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	3 A	SPDT	Clear (Red Filter/Diffuser)	16 mm	LED, Red	125 V	50 °C	-25 °C	30 V	Illuminated, Standard
NKK SWITCHES YB16SKW03	On-On	200000 Cycles	No Marking		PC Pin			100000 Cycles	Panel Mount, Front	Tactile Feedback	Plunger for Cap	3 A	SPDT		16 mm		125 V	70 °C	-25 °C	30 V	Standard
NKK SWITCHES YB16SKW01-5F-JF	On-On	200000 Cycles	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	2.2 VDC	100000 Cycles	Panel Mount, Front	Tactile Feedback	Button, Square	3 A	SPDT	Clear	16 mm	Green, LED	125 V	50 °C	-25 °C	30 V	Illuminated, Standard
