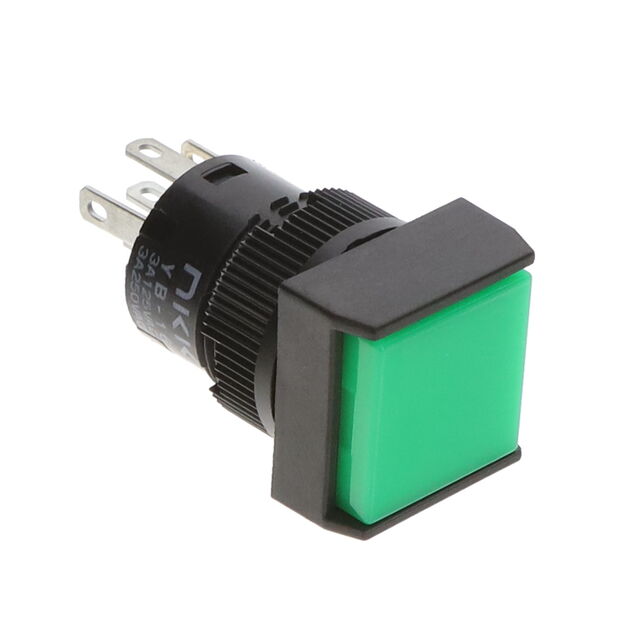

YB16SKW01-FB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB16SKW01-FB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB16SKW01-FB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB16SK Series

Part	Voltage Rating - DC	Mounting Type	Actuator Marking	Illumination Voltage (Nominal)	Circuit	Termination Style	Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Current Rating (Amps)	Switch Function	Electrical Life	Mechanical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Features	Termination Style	Termination Style
NKK Switches YB16SKW03-5D-JB	30 V	Panel Mount Front	No Marking	2 VDC	SPDT	PC Pin	Illuminated Standard	Clear	50 °C	-25 °C	Amber LED	3 A	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	125 V	Tactile Feedback
NKK Switches YB16SKW01-5D05-JD	30 V	Panel Mount Front	No Marking	5 VDC	SPDT	Quick Connect Solder	Illuminated Standard	Clear	50 °C	-25 °C	Amber LED	3 A	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	125 V	Tactile Feedback	0.11 in	2.8 mm
NKK Switches YB16SKW01-5D-JB	30 V	Panel Mount Front	No Marking	2 VDC	SPDT	Quick Connect Solder	Illuminated Standard	Clear	50 °C	-25 °C	Amber LED	3 A	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	125 V	Tactile Feedback	0.11 in	2.8 mm
NKK Switches YB16SKW01-5C24-JC	30 V	Panel Mount Front	No Marking	24 V	SPDT	Quick Connect Solder	Illuminated Standard	Clear (Red Filter/Diffuser)	50 °C	-25 °C	LED Red	3 A	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	125 V	Tactile Feedback	0.11 in	2.8 mm
NKK Switches YB16SKG01-5C05-JC	28 V	Panel Mount Front	No Marking	5 VDC	SPDT	Quick Connect Solder	Illuminated Standard	Clear (Red Filter/Diffuser)	50 °C	-25 °C	LED Red	0.4 VA	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	28 V	Tactile Feedback	0.11 in	2.8 mm
NKK Switches YB16SKW01-5F05-JF	30 V	Panel Mount Front	No Marking	5 VDC	SPDT	Quick Connect Solder	Illuminated Standard	Clear	50 °C	-25 °C	Green LED	3 A	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	125 V	Tactile Feedback	0.11 in	2.8 mm
NKK Switches YB16SKG01-6G-JB	28 V	Panel Mount Front	No Marking	3.6 VDC	SPDT	Solder Lug	Illuminated Standard	Clear	70 °C	-25 °C	Blue LED	0.4 VA	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	28 V	Tactile Feedback
NKK Switches YB16SKW01-5D12-JD	30 V	Panel Mount Front	No Marking	12 VDC	SPDT	Quick Connect Solder	Illuminated Standard	Clear	50 °C	-25 °C	Amber LED	3 A	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	125 V	Tactile Feedback	0.11 in	2.8 mm
NKK Switches YB16SKG01-1F05-JA	28 V	Panel Mount Front	No Marking	5 VDC	SPDT	Quick Connect Solder	Illuminated Standard	Clear	50 °C	-25 °C	Green LED	0.4 VA	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	28 V	Tactile Feedback	0.11 in	2.8 mm
NKK Switches YB16SKG01-5D-JD	28 V	Panel Mount Front	No Marking	2 VDC	SPDT	Quick Connect Solder	Illuminated Standard	Clear	50 °C	-25 °C	Amber LED	0.4 VA	On-On	100000 Cycles	200000 Cycles	Button Square	16 mm	28 V	Tactile Feedback	0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.66
		10	$ 13.14
		100	$ 11.48
		1000	$ 8.94
LCSC	Piece	1	$ 5.61
Newark	Each	1	$ 27.82
		5	$ 26.42
		10	$ 24.49
		25	$ 22.34
		50	$ 19.34
		100	$ 18.05
		250	$ 16.44

Description

General part information

YB16SK Series

Pushbutton Switch SPDT Standard Panel Mount, Front
