16STRYELSXL500
ActiveRemington Industries
HOOK-UP STRND 16AWG YELLOW 500'
16STRYELSXL500
ActiveRemington Industries
HOOK-UP STRND 16AWG YELLOW 500'
Description
General part information
16STRYELSXL500

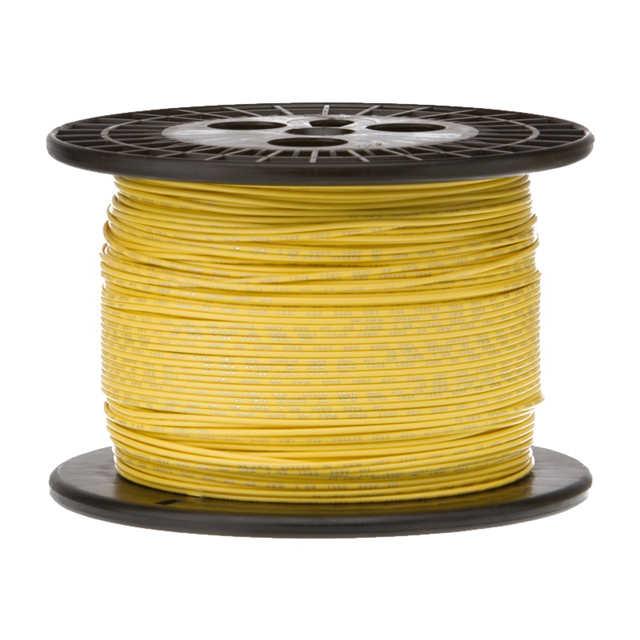

16 AWG Hook-Up, Automotive Wire 19/29 Yellow 60V 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 16STRYELSXL500 |
|---|---|
| Cable Type | Hook-Up, Automotive |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 19 |
| Conductor Strand Gauge | 29 AWG |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.118 in |
| Jacket (Insulation) Material | Polyethylene (XLPE) |
| Jacket Color | Yellow |
| Length | 500 ft |
| Operating Temperature | 125 °C |
| Voltage | 60 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
