MMT371A715-0009
ActiveMETZ CONNECT USA Inc.

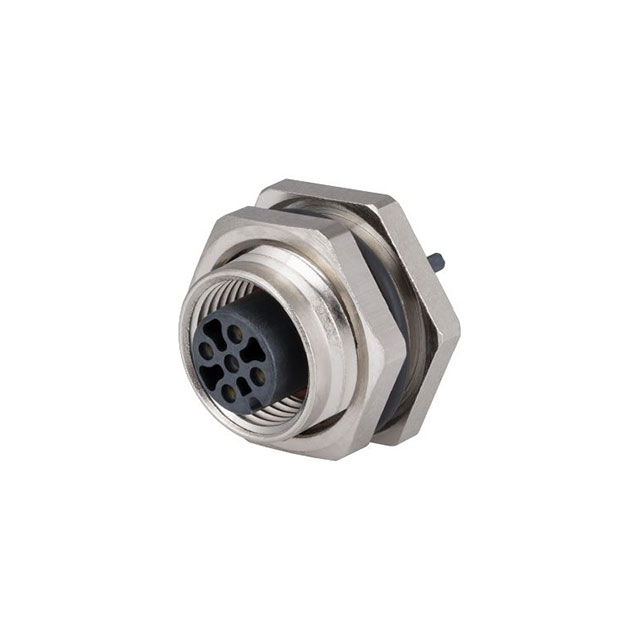

M12 PC BOARD JACK, IP67 IN UNMAT
MMT371A715-0009
ActiveMETZ CONNECT USA Inc.
M12 PC BOARD JACK, IP67 IN UNMAT
Description
General part information
MMT371A715-0009
4 Position Circular Connector Jack, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MMT371A715-0009 |
|---|---|
| Applications | Railway |
| Color | Silver |
| Connector Type | Jack, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Board Guide |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | LCP, Liquid Crystal Polymer |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 V |
