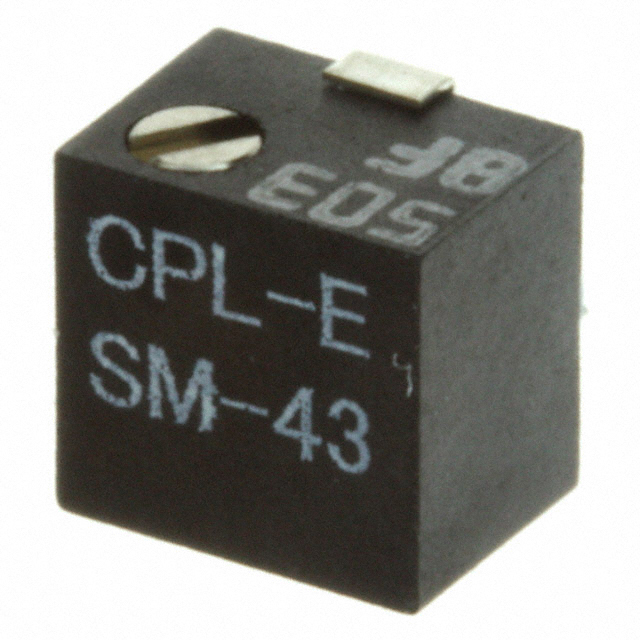

SM-43TA504
ActiveNidec Components Corporation
TRIMMER 500K OHM 0.25W J LEAD
SM-43TA504
ActiveNidec Components Corporation
TRIMMER 500K OHM 0.25W J LEAD
Description
General part information
SM-43TA504
500 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 5.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | SM-43TA504 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 5 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 500 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.189 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.181 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 10 % |
