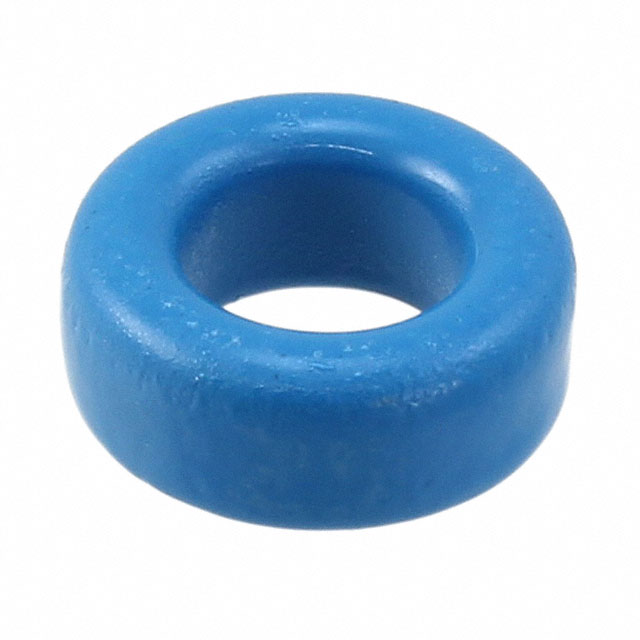

Specification	B64290L0044X087

Core Factor (ΣI/A) mm⁻¹	2.46 mm⁻¹
Core Type	Toroid
Diameter	0.535 in
Effective Area (Ae)	12.23 mm²
Effective Length (le)	30.09 mm
Effective Magnetic Volume (Ve)	368 mm³
Finish	Epoxy
Gap	Ungapped
Height	0.234 in
Inductance Factor (Al)	1.12 µH
Initial Permeability (µi)	2200
Material	N87
Tolerance	25 %
