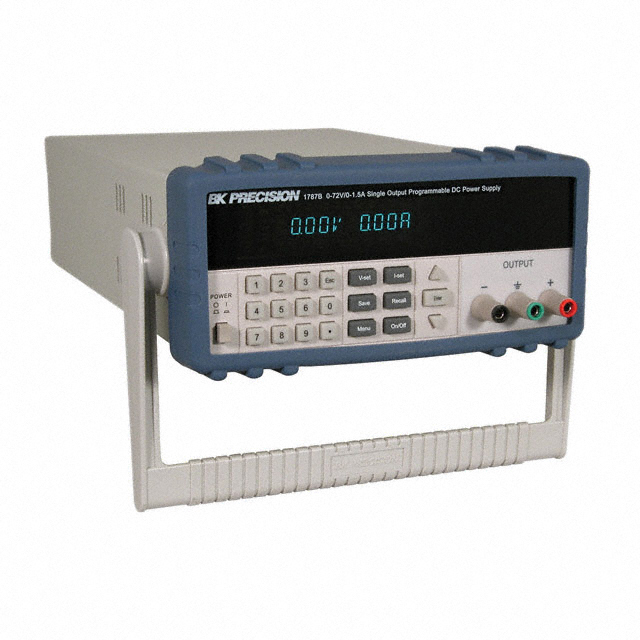

1787B
ObsoleteB&K PRECISION
POWER SUPPLY DGTL PROGRAM 0-72V
1787B
ObsoleteB&K PRECISION
POWER SUPPLY DGTL PROGRAM 0-72V
Description
General part information
1787B
0 ~ 72VDC Output Bench (AC to DC) Power Supply VFD 0 ~ 1.5A Output Features Programmable, RS232 Port
Technical Specifications
Parameters and characteristics for this part
| Specification | 1787B |
|---|---|
| Accuracy - Voltmeter (Absolute) | 15 mV |
| Accuracy - Voltmeter (Percent) | 0.05 % |
| Current - Output (Max) | 1.5 A |
| Current - Output (Min) | 0 A |
| Current Regulation - Line (Absolute) | 2 mA |
| Current Regulation - Line (Percentage) | 0.1 % |
| Current Regulation - Load (Absolute) | 2 mA |
| Current Regulation - Load (Percentage) | 0.1 % |
| Display Type | VFD |
| Features | Programmable, RS232 Port |
| Number of Characters | 10 characters |
| Number of Outputs | 1 |
| Ripple Voltage (Peak-to-Peak) | 3 mV |
| Ripple Voltage (RMS) | 1 mV |
| Size / Dimension Height | 4.16 in |
| Size / Dimension Length | 15 in |
| Size / Dimension Width | 10 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 72 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Supply | 220 VAC, 110 VAC |
| Voltage - Supply | 220VAC, 110VAC |
| Voltage Regulation - Line (Absolute) | 3 mV |
| Voltage Regulation - Line (Percentage) | 0.01 % |
| Voltage Regulation - Load (Percentage) | 0.01 % |
| Voltage Regulation - Load (Voltage Offset) | 3 mV |
| Weight | 15 lbs |
