CK45-R3AD392K-NR
ObsoleteTDK Corporation
CAP CER 3900PF 1KV RADIAL
CK45-R3AD392K-NR
ObsoleteTDK Corporation
CAP CER 3900PF 1KV RADIAL
Description
General part information
CK45-R3AD392K-NR

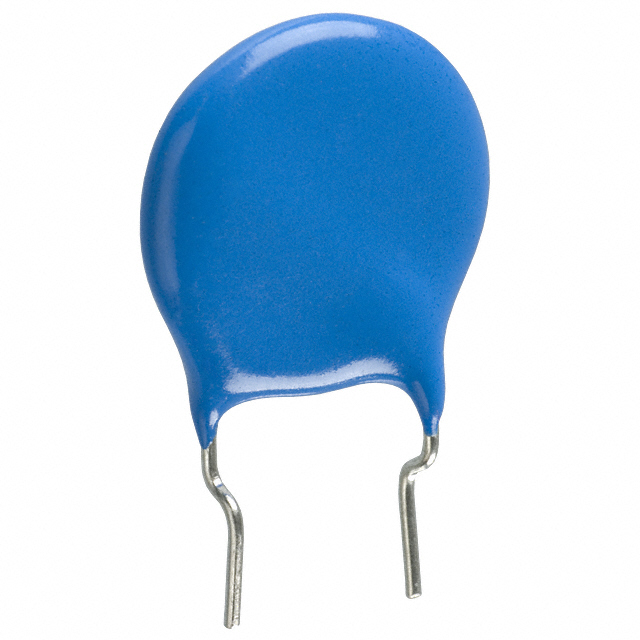

3900 pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CK45-R3AD392K-NR |
|---|---|
| Applications | General Purpose |
| Capacitance | 3900 pF |
| Features | Low Dissipation Factor, High Voltage |
| Height - Seated (Max) | 0.728 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.571 in |
| Temperature Coefficient | R |
| Tolerance | 10 % |
| Voltage - Rated | 1000 V |
