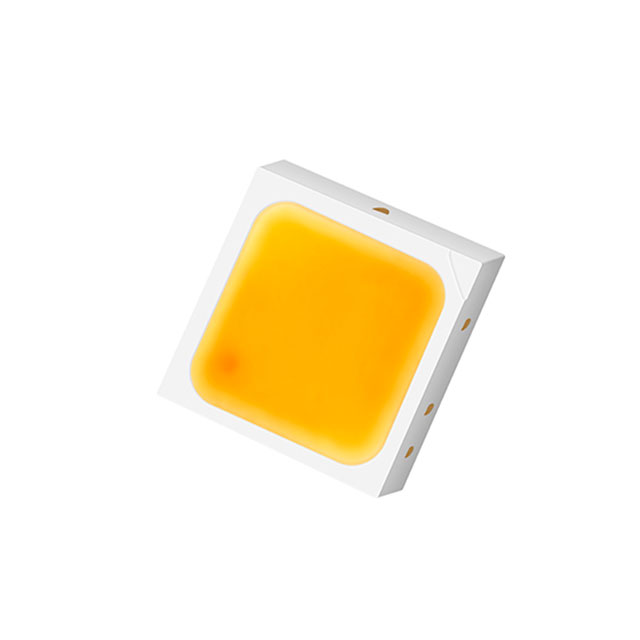

SPMWHT327FD5GBU0S4

Samsung Semiconductor, Inc.

LED LM302A WARM WHT 3500K 3030

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPMWHT327FD5GBU0S4

Samsung Semiconductor, Inc.

LED LM302A WARM WHT 3500K 3030

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	25000	$ 0.08
		62500	$ 0.07
		125000	$ 0.07

Description

General part information

SPMWHT327 Series

LED Lighting LM302A White, Warm 3500K 6.3V 150mA 120° 1212 (3030 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWHT327FD5GBU0S4	SPMWHT327 Series

CCT (K)	3500 K	2700 - 6500 K
Color	White, Warm	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	80	70 - 80
Current - Max [Max]	200 mA	200 mA
Current - Test	150 mA	150 mA
Flux @ 25°C, Current - Test	127 lm	108 - 133 lm
Flux @ 25°C, Current - Test	-	115 - 123 lm
Flux @ 25°C, Current - Test	-	127 lm
Flux @ 25°C, Current - Test	-	104 - 129 lm
Flux @ 25°C, Current - Test	-	112 - 137 lm
Height - Seated (Max) [Max] [z]	0.03 in	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm	0.75 mm
Lumens/Watt @ Current - Test	-	114 - 141 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Thermal Resistance of Package [custom]	12 °C/W	12 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	6.3 V	6.3 V

SPMWHT327 Series

LED LM302A WARM WHT 2700K 3030

Part	CRI (Color Rendering Index)	Current - Max [Max]	Flux @ 25°C, Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Thermal Resistance of Package [custom]	Color	Supplier Device Package	Package / Case	Package / Case	CCT (K)	Viewing Angle	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Test	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Samsung Semiconductor, Inc. SPMWHT327FD5GBWMS3	80	200 mA	114 lm	121 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Warm, White	3030	1212	3030 Metric	2700 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD3GBQ0S3	70	200 mA	123 lm	130 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Cool, White	3030	1212	3030 Metric	5700 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA	119 lm	127 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBU0S2	80	200 mA	111 lm	117 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Warm, White	3030	1212	3030 Metric	3500 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA			107 lm	115 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBU0S3	80	200 mA	119 lm	126 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Warm, White	3030	1212	3030 Metric	3500 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA	115 lm, 123 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBP0S4	80	200 mA	129 lm	137 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Cool, White	3030	1212	3030 Metric	6500 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA			125 lm	133 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBTMS4	80	200 mA	129 lm	137 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Neutral, White	3030	1212	3030 Metric	4000 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA			125 lm	133 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBTMS3	80	200 mA	121 lm	128 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Neutral, White	3030	1212	3030 Metric	4000 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD5GBP0S3	80	200 mA	121 lm	128 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Cool, White	3030	1212	3030 Metric	6500 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD3GBQMS4	70	200 mA	131 lm	139 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Cool, White	3030	1212	3030 Metric	5700 K	120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD3GBVMS4	70	200 mA		131 lm/W	6.3 V	0.03 in	0.75 mm	Surface Mount	12 °C/W	Warm, White	3030	1212	3030 Metric		120 °	0.118 in	3 mm	3 mm	0.118 in	150 mA
