ZL8101ALAFTK

Active

Renesas Electronics Corporation

IC REG CTRLR BUCK PMBUS 32QFN

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC REG CTRLR BUCK PMBUS 32QFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZL8101ALAFTK	ZL8101 Series

	-	-
Clock Sync	True	True
Control Features	Power Good, Soft Start, Enable, Tracking	Power Good, Soft Start, Enable, Tracking
Duty Cycle (Max)	95 %	95 %
Frequency - Switching [Max]	1.4 MHz	1.4 MHz
Frequency - Switching [Min]	200 kHz	200 kHz
Function	Step-Down	Step-Down
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Phases	1	1
Output Type	Transistor Driver	Transistor Driver

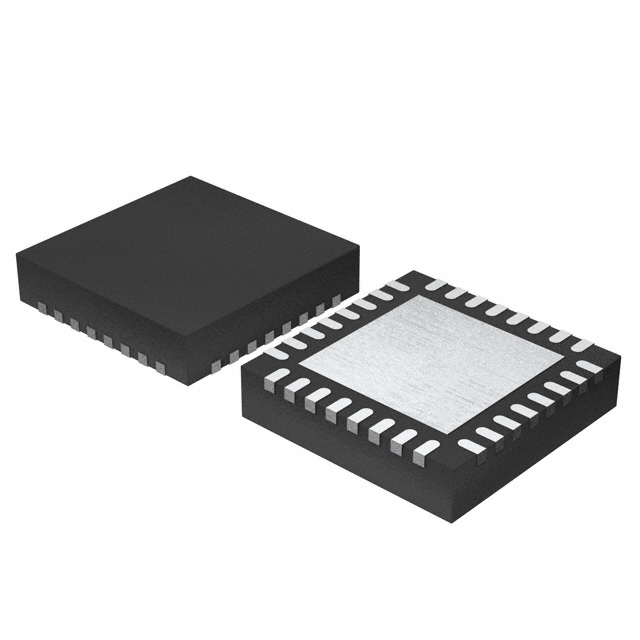

Package / Case	32-VFQFN Exposed Pad	32-VFQFN Exposed Pad
Serial Interfaces	SMBus, I2C, PMBus	SMBus, I2C, PMBus
Supplier Device Package	32-QFN (5x5)	32-QFN (5x5)
Synchronous Rectifier	True	True
Topology	Buck	Buck

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC AMP CLASS

Part	Output Configuration	Supplier Device Package	Number of Outputs	Clock Sync	Output Phases	Serial Interfaces	Function	Mounting Type	Synchronous Rectifier	Topology	Package / Case	Frequency - Switching [Min]	Frequency - Switching [Max]	Control Features	Output Type	Duty Cycle (Max)	Operating Temperature [Max]	Operating Temperature [Min]
Renesas Electronics Corporation ZL8101ALAFTKR5475
Renesas Electronics Corporation ZL8101ALAFTK	Positive	32-QFN (5x5)	1		1	I2C, PMBus, SMBus	Step-Down	Surface Mount		Buck	32-VFQFN Exposed Pad	200 kHz	1.4 MHz	Enable, Power Good, Soft Start, Tracking	Transistor Driver	95 %	85 °C	-40 °C

General part information

Buck Regulator Positive Output Step-Down I2C, PMBus, SMBus DC-DC Controller IC 32-QFN (5x5)
