LCD-S601C71TF
ActiveLumex Opto/Components Inc.
LCD MOD 6DIG 6 X 1 TRANSFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCD-S601C71TF
ActiveLumex Opto/Components Inc.
LCD MOD 6DIG 6 X 1 TRANSFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LCD-S601C71TF | LCD-S601 Series |
|---|---|---|
| Background Color | Gray | Gray |
| Backlight | Without Backlight | Without Backlight |
| Character Format | 7-Segment | 7-Segment |
| Character Size [y] | 10.16 mm | 10.16 mm |
| Character Size [z] | 17.99 mm | 17.99 mm |
| Display Format [x] | 6 | 6 |
| Display Format [y] | 1 | 1 |
| Display Mode | Transflective | Reflective, Transflective |
| Display Type | TN - Twisted Nematic | TN - Twisted Nematic |
| Number of Characters | 6 | 6 |
| Outline L x W x H [x] | 93.85 mm | 93.85 mm |
| Outline L x W x H [y] | 38.1 mm | 38.1 mm |
| Outline L x W x H [z] | 2.8 mm | 2.8 mm |
| Viewing Area [x] | 86.36 mm | 86.36 mm |
| Viewing Area [y] | 24.13 mm | 24.13 mm |
| Voltage - Supply [Max] | 5 V | 5 V |
| Voltage - Supply [Min] | 3 V | 3 V |
LCD-S601 Series
LCD MOD 6 DIG 6 X 1 REFLECTIVE
| Part | Backlight | Background Color | Voltage - Supply [Max] | Voltage - Supply [Min] | Character Size [z] | Character Size [y] | Display Format [x] | Display Format [y] | Character Format | Number of Characters | Display Mode | Display Type | Viewing Area [x] | Viewing Area [y] | Outline L x W x H [z] | Outline L x W x H [y] | Outline L x W x H [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. LCD-S601C71TR | Without Backlight | Gray | 5 V | 3 V | 17.99 mm | 10.16 mm | 6 | 1 | 7-Segment | 6 | Reflective | TN - Twisted Nematic | 86.36 mm | 24.13 mm | 2.8 mm | 38.1 mm | 93.85 mm |
Lumex Opto/Components Inc. LCD-S601C71TF | Without Backlight | Gray | 5 V | 3 V | 17.99 mm | 10.16 mm | 6 | 1 | 7-Segment | 6 | Transflective | TN - Twisted Nematic | 86.36 mm | 24.13 mm | 2.8 mm | 38.1 mm | 93.85 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCD-S601 Series

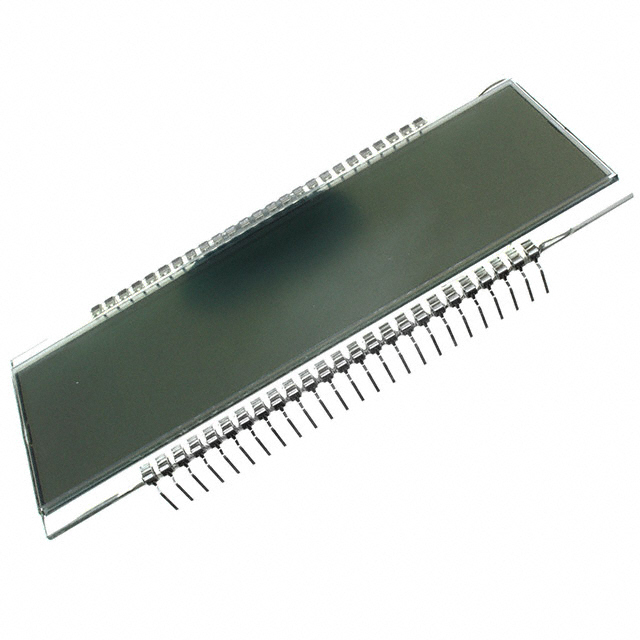

Character Display Module Transflective 7-Segment TN - Twisted Nematic Without Backlight 93.85mm x 38.10mm x 2.80mm
