LMR-900-DB

Active

Amphenol Times Microwave Systems

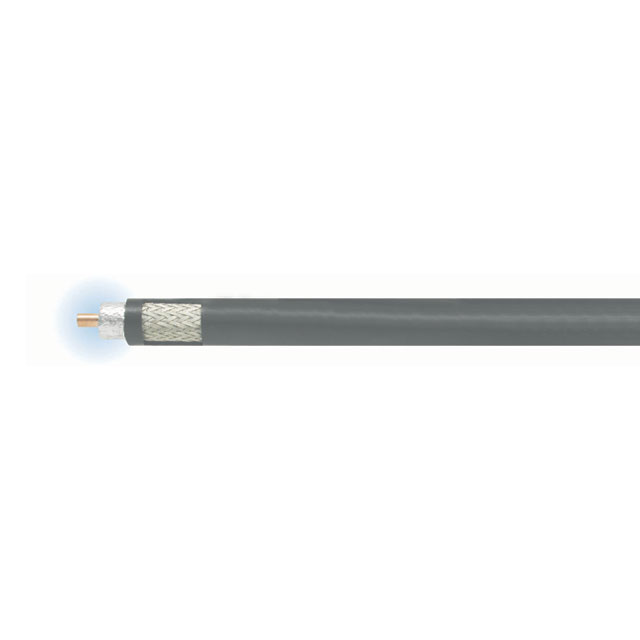

CABLE LMR-900 BLACK PE 10'

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

CABLE LMR-900 BLACK PE 10'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 10.0' (3.05m) 50 Ohms

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LMR-900-DB	LMR-900 Series

Cable Type	Coaxial	Coaxial, Coaxial - Plenum, Coaxial - Riser
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	-	Solid
Dielectric Diameter [diameter]	17.27 mm	17.27 mm
Dielectric Diameter [diameter]	0.68 in	0.68 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	Direct Burial, Watertight	Direct Burial, Watertight, Fire Retardant
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	22.1 mm	20.37 - 22.1 mm
Jacket (Insulation) Diameter [diameter]	0.87 "	0.802 - 0.87 "
Jacket (Insulation) Material	Polyethylene (PE)	Polyethylene (PE), Fluoropolymer, Plenum, Polyethylene (PE), Riser
Jacket Color	Black	Black, Red
Length	15.24 m	15.24 - 76.2 m
Length	50 ft	50 - 3000 ft
Length [x]	3.05 m	3.05 - 30.48 m
Length [x]	10 ft	10 - 100 ft
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid
VoP, Velocity of Propagation	87	76 - 87

CABLE LMR-900 BLACK PE 10'

Part	Shield Type	Dielectric Material	Cable Type	Impedance	VoP, Velocity of Propagation	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Conductor Material	Shield Material	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Length	Length	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand
Amphenol Times Microwave Systems LMR-900-DB	Braid	Foam Polyethylene (FPE)	Coaxial	50 Ohms	87	85 °C	-40 °C	3.05 m	10 ft	Copper, Bare	Aluminum, Copper, Tinned	Polyethylene (PE)	17.27 mm	0.68 in	Black	15.24 m	50 ft	Direct Burial, Watertight	22.1 mm	0.87 "
Amphenol Times Microwave Systems LMR-900-LLPX	Braid	Polytetrafluoroethylene (PTFE)	Coaxial - Plenum	50 Ohms	76	125 °C	-40 °C			Copper, Bare	Aluminum, Copper, Tinned	Fluoropolymer, Plenum	17.27 mm	0.68 in	Red				20.37 mm	0.802 in
Amphenol Times Microwave Systems LMR-900-FR	Braid	Foam Polyethylene (FPE)	Coaxial - Riser	50 Ohms	87	85 °C	-40 °C	30.48 m	100 ft	Copper, Bare	Aluminum, Copper, Tinned	Polyethylene (PE), Riser	17.27 mm	0.68 in	Black	15.24 m, 76.2 m	50 ft, 3000 "	Fire Retardant	22.1 mm	0.87 "
Amphenol Times Microwave Systems LMR-900-RR-DB	Braid	Foam Polyethylene (FPE)	Coaxial	50 Ohms	87	85 °C	-40 °C			Copper, Bare	Aluminum	Polyethylene (PE)			Black			Direct Burial, Watertight	22.1 mm	0.87 "	Solid
