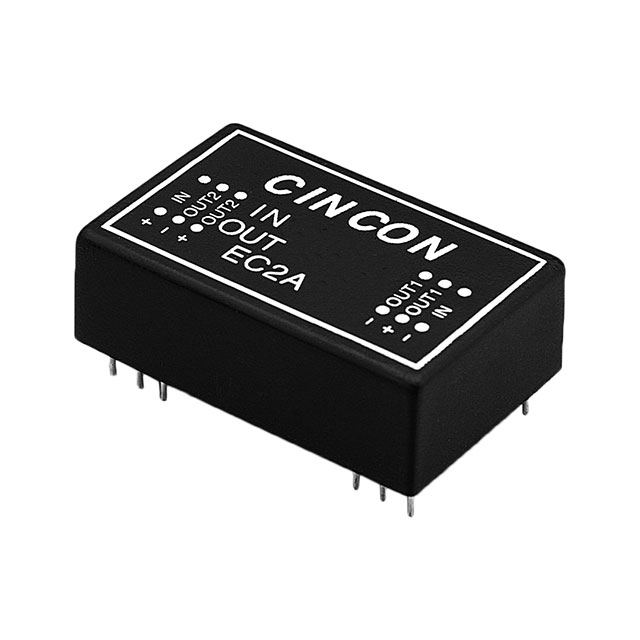

EC2A05
ObsoleteCincon Electronics Co. LTD
DC DC CONVERTER +/-15V 1.5W
Deep-Dive with AI
Search across all available documentation for this part.
EC2A05
ObsoleteCincon Electronics Co. LTD
DC DC CONVERTER +/-15V 1.5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC2A05 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 50 mA |
| Current - Output (Max) | 50 mA |
| Efficiency | 50 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 24-DIP Module, 14 Leads |
| Power (Watts) | 1.5 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EC2A05
Isolated Module DC DC Converter 2 Output 15V -15V 50mA, 50mA 4.5V - 5.5V Input
Documents
Technical documentation and resources
No documents available
