LMR-300

Active

Amphenol Times Microwave Systems

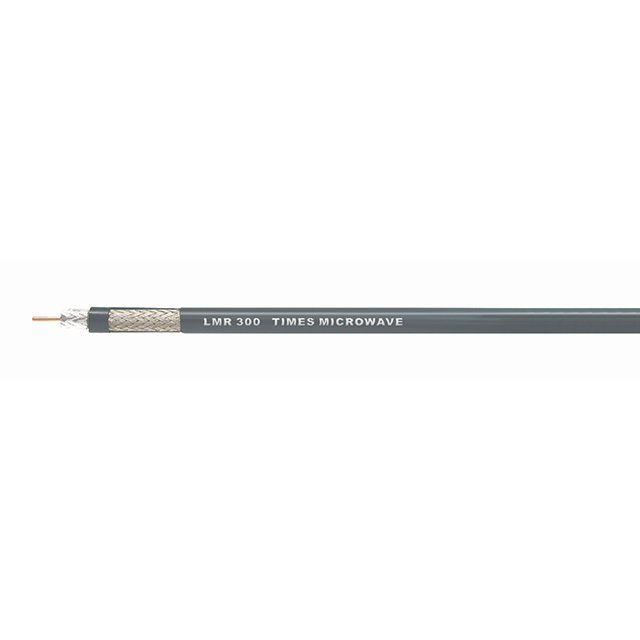

LMR-300 STANDARD CABLE, BLACK PE

Deep-Dive with AI

Search across all available documentation for this part.

LMR-300

Active

Amphenol Times Microwave Systems

LMR-300 STANDARD CABLE, BLACK PE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 134.46
		1	$ 68.81
		1	$ 13.87
		3	$ 124.40

Description

General part information

LMR-300 Series

Coaxial Cable 50.0' (15.24m) 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-300	LMR-300 Series

Cable Type	Coaxial	Coaxial - Riser, Coaxial, Coaxial - Plenum
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	4.83 mm	4.83 mm
Dielectric Diameter [diameter]	0.19 in	0.19 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	-	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	7.62 mm	6.6 - 7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in	0.26 - 0.3 in
Jacket (Insulation) Material	Polyethylene (PE)	Poly-Vinyl Chloride (PVC), Riser, Poly-Vinyl Chloride (PVC), Polyethylene (PE), Riser, Polyethylene (PE), Fluoropolymer, Plenum, Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black, Red
Length	15.24 m	15.24 m
Length	50 ft	50 ft
Length [x]	3.05 m, 30.48 m	3.05 - 30.48 m
Length [x]	10 ft, 100 ft	10 - 100 ft
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Braid, Foil
VoP, Velocity of Propagation	82	76 - 85

LMR-300 Series

LMR-300 W/ FRPVC JKT, LISTED CMR

Part	VoP, Velocity of Propagation	Conductor Strand	Jacket Color	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Jacket (Insulation) Material	Shield Type	Impedance	Conductor Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Length [x]	Length [x]	Length	Length
Amphenol Times Microwave Systems LMR-300-FR-PVC	82	Solid	Black	4.83 mm	0.19 in	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper, Tinned	Poly-Vinyl Chloride (PVC), Riser	Braid	50 Ohms	Copper, Bare	Fire Retardant	7.62 mm	0.3 in	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-PVC	82	Solid	Black	4.83 mm	0.19 in	Coaxial	85 °C	-40 °C	Aluminum, Copper, Tinned	Poly-Vinyl Chloride (PVC)	Braid	50 Ohms	Copper, Bare		7.62 mm	0.3 in	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-FR	82	Solid	Black	4.83 mm	0.19 in	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper, Tinned	Polyethylene (PE), Riser	Braid	50 Ohms	Copper, Bare	Fire Retardant	7.62 mm	0.3 in	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-PVC-W	82	Solid		4.83 mm	0.19 in	Coaxial	85 °C	-40 °C	Aluminum, Copper, Tinned	Poly-Vinyl Chloride (PVC)	Braid	50 Ohms	Copper, Bare		7.62 mm	0.3 in	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-75	85	Solid	Black	4.83 mm	0.19 in	Coaxial	85 °C	-40 °C	Aluminum, Copper, Tinned	Polyethylene (PE)	Braid	75 Ohms	Copper, Bare		7.62 mm	0.3 in	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-LLPX	76	Solid	Red	4.83 mm	0.19 in	Coaxial - Plenum	125 °C	-40 °C	Aluminum, Copper, Tinned	Fluoropolymer, Plenum	Braid	50 Ohms	Copper, Bare		6.6 mm	0.26 in	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems LMR-300	82	Solid	Black	4.83 mm	0.19 in	Coaxial	85 °C	-40 °C	Aluminum, Copper, Tinned	Polyethylene (PE)	Braid, Foil	50 Ohms	Copper, Bare		7.62 mm	0.3 in	Foam Polyethylene (FPE)	3.05 m, 30.48 m	10 ft, 100 ft	15.24 m	50 ft
Amphenol Times Microwave Systems LMR-300-DB	82	Solid	Black	4.83 mm	0.19 in	Coaxial	85 °C	-40 °C	Aluminum, Copper, Tinned	Polyethylene (PE)	Braid	50 Ohms	Copper, Bare	Direct Burial, Watertight	7.62 mm	0.3 in	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-300-ULTRAFLEX	85		Black	4.83 mm	0.19 in	Coaxial	85 °C	-40 °C	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)	Braid	50 Ohms	Copper, Bare		7.62 mm	0.3 in	Foam Polyethylene (FPE)
