RG303-NM-TF(QTY:15m)
ActiveMcGill Microwave Systems
RG303 ASSY N MALE-TNC FEMALE 15M
RG303-NM-TF(QTY:15m)
ActiveMcGill Microwave Systems
RG303 ASSY N MALE-TNC FEMALE 15M
Description
General part information
RG303-NM-TF(QTY:15m)

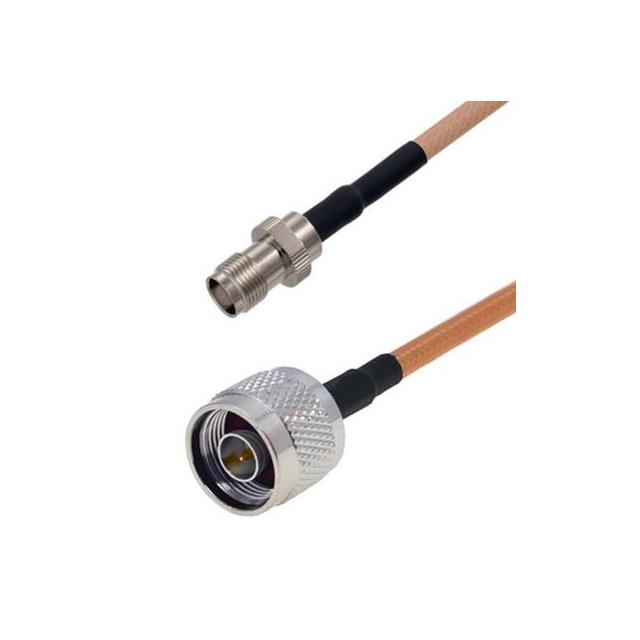

Cable Assembly Coaxial N-Type to TNC RG-303 590.6" (15.0m) 49.2'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG303-NM-TF(QTY:15m) |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 303 |
| Color | Brown |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length (ft) | 49.2 ft |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
