Specification	5952SQ-1(250)

Adhesive	Acrylic
Backing	Polyethylene Film
Carrier	Polyethylene Film
Color	Black
Length	25.4 mm
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature (Maximum)	100 °F
Storage/Refrigeration Temperature (Minimum)	40 °F
Tape Type	Double Sided, Double Coated
Temperature Range (Max)	250 °F
Thickness	0.045 in
Thickness - Adhesive	0.04 in
Thickness - Backing, Carrier	0.005 in
Width	1 in

5952 Series

...

Part	Storage/Refrigeration Temperature (Minimum)	Storage/Refrigeration Temperature (Maximum)	Shelf Life Start	Shelf Life	Thickness	Thickness - Adhesive	Carrier	Backing	Adhesive	Width	Length (yd)	Length (ft)	Color	Thickness - Backing, Carrier	Temperature Range (Max)	Tape Type	Length	Temperature Range (Single)	Usage
3M (TC) 5952-1.625-5	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	1.63 in	5 yd	15 ft	Black	0.005 in	250 °F	Double Coated Double Sided
3M (TC) 5952-0.75-4(60)	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	0.75 in			Black	0.005 in	250 °F	Double Coated Double Sided	4 in

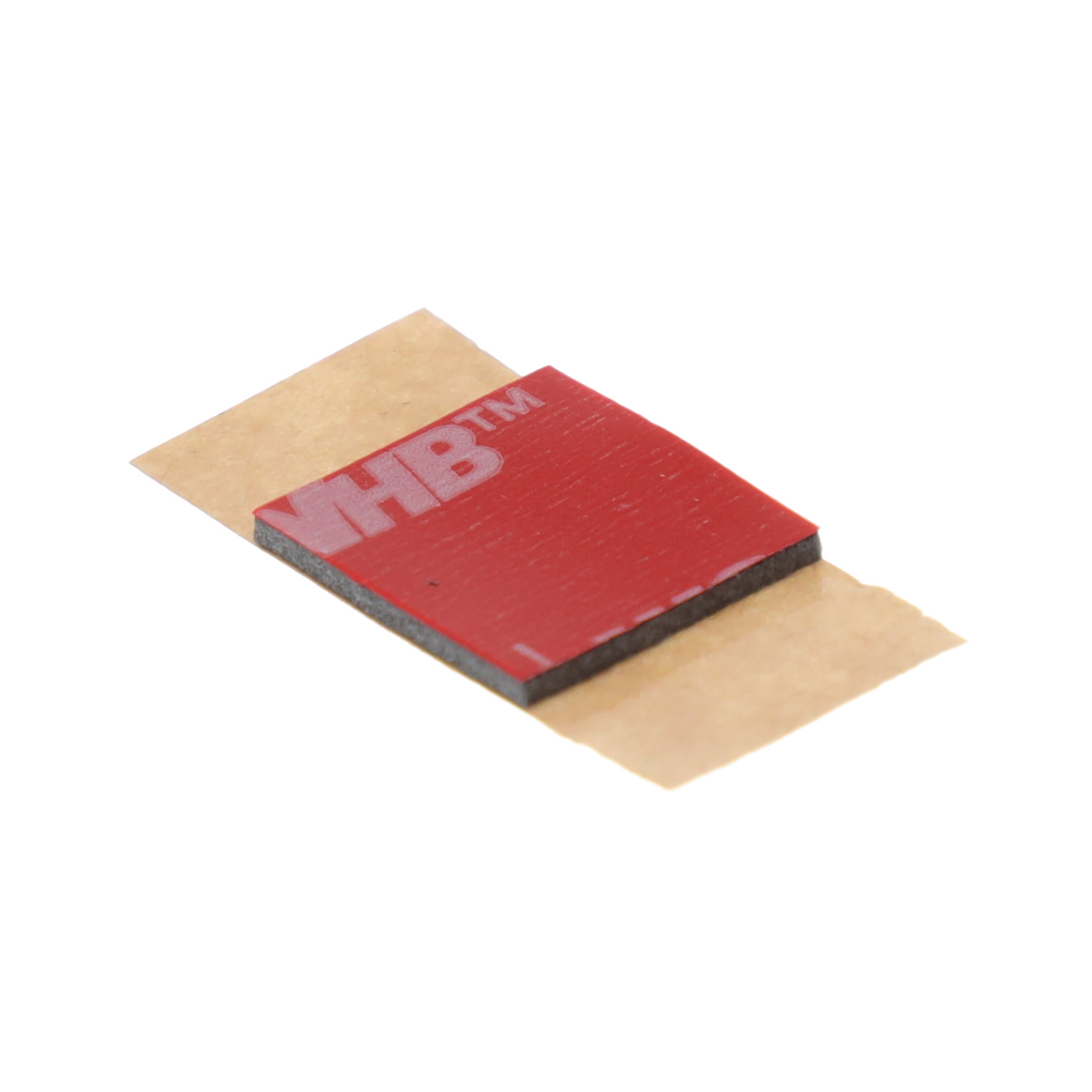

3M (TC) 5952SQ-0.5(250)	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	12.7 mm			Black	0.005 in	250 °F	Double Coated Double Sided	0.5 in
3M (TC) 3M 5952 9" X 9"-2	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	9 in			Black	0.005 in	250 °F	Double Coated Double Sided	228.6 mm
3M (TC) 3M 5952 1.5" X 7"-12	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	1.5 in			Black	0.005 in	250 °F	Double Coated Double Sided	7 in
3M (TC) 5952-5-7(6)	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	5 in			Black	0.005 in	250 °F	Double Coated Double Sided	7 in
3M (TC) 5952-0.75-3(5)	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	0.75 in			Black	0.005 in	250 °F	Double Coated Double Sided	3 "
3M (TC) 3M 5952 0.75" X 0.75"-5	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	0.75 in			Black	0.005 in	250 °F	Double Coated Double Sided	0.75 in
3M (TC) 5952-1-5	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	1 in	5 yd	15 ft	Black	0.005 in		Double Coated Double Sided		250 °F	General Purpose
3M (TC) 3M 5952 0.75" X 7"-15	40 °F	100 °F	Date of Shipment	24 Months	0.045 in	0.04 in	Polyethylene Film	Polyethylene Film	Acrylic	0.75 in			Black	0.005 in	250 °F	Double Coated Double Sided	7 in
