87989-3

Active

TE Connectivity AMP Connectors

CONN RCPT 3POS 0.156 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

87989-3

Active

TE Connectivity AMP Connectors

CONN RCPT 3POS 0.156 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	4428	$ 3.24

Description

General part information

87989 Series

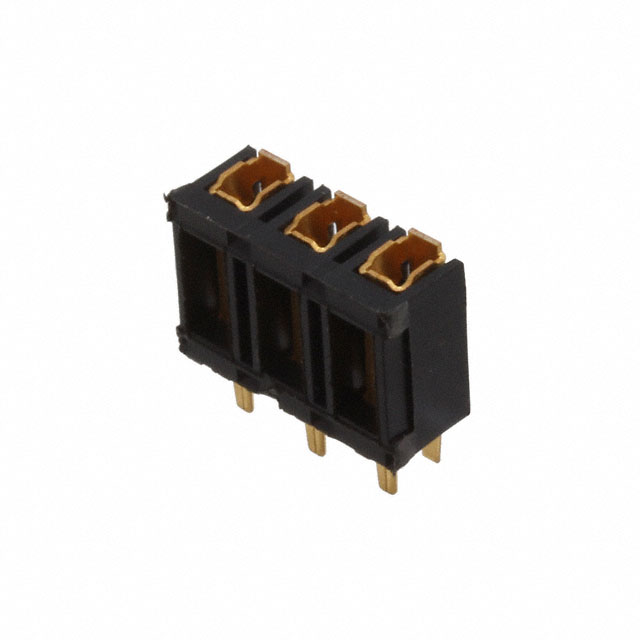

3 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87989-3	87989 Series

Connector Type	Receptacle, Bottom Entry	Receptacle, Bottom Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Aluminum	Aluminum
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	1.27 µm	1.27 µm
Contact Finish Thickness - Post	50 µin	50 µin
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.3 in	0.3 in
Insulation Height [z]	7.62 mm	7.62 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87989 Series

CONN RCPT 2POS 0.156 GOLD PCB

Part	Mounting Type	Insulation Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions	Contact Finish - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Material	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Rows	Contact Shape	Contact Finish - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Termination
TE Connectivity AMP Connectors 87989-2	Through Hole	Thermoplastic	Push-Pull	1.27 µm	50 µin	Receptacle, Bottom Entry	2	Aluminum	Black	2.84 mm	0.112 in	30 Áin	0.76 Ám	0.3 in	7.62 mm	Phosphor Bronze	Female Socket	UL94 V-0	0.156 in	3.96 mm	All	1	Square	Gold	Board to Board, Cable	-65 ░C	105 ░C	Solder
TE Connectivity AMP Connectors 87989-5	Through Hole	Thermoplastic	Push-Pull	1.27 µm	50 µin	Receptacle, Bottom Entry		Aluminum	Black	2.84 mm	0.112 in	30 Áin	0.76 Ám	0.3 in	7.62 mm	Phosphor Bronze	Female Socket	UL94 V-0	0.156 in	3.96 mm	All	1	Square	Gold	Board to Board, Cable	-65 ░C	105 ░C	Solder
TE Connectivity AMP Connectors 87989-6	Through Hole	Thermoplastic	Push-Pull	1.27 µm	50 µin	Receptacle, Bottom Entry	6	Aluminum	Black	2.84 mm	0.112 in	30 Áin	0.76 Ám	0.3 in	7.62 mm	Phosphor Bronze	Female Socket	UL94 V-0	0.156 in	3.96 mm	All	1	Square	Gold	Board to Board, Cable	-65 ░C	105 ░C	Solder
TE Connectivity AMP Connectors 87989-3	Through Hole	Thermoplastic	Push-Pull	1.27 µm	50 µin	Receptacle, Bottom Entry		Aluminum	Black	2.84 mm	0.112 in	30 Áin	0.76 Ám	0.3 in	7.62 mm	Phosphor Bronze	Female Socket	UL94 V-0	0.156 in	3.96 mm	All	1	Square	Gold	Board to Board, Cable	-65 ░C	105 ░C	Solder
