CN22J8GS405HQA8

Active

LITTELFUSE

DOUBLE POLE POWER ROCKER SWITCH

Find alt

Alpha

CN22J8GS405HQA8

Active

LITTELFUSE

DOUBLE POLE POWER ROCKER SWITCH

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Cn0 Series Series

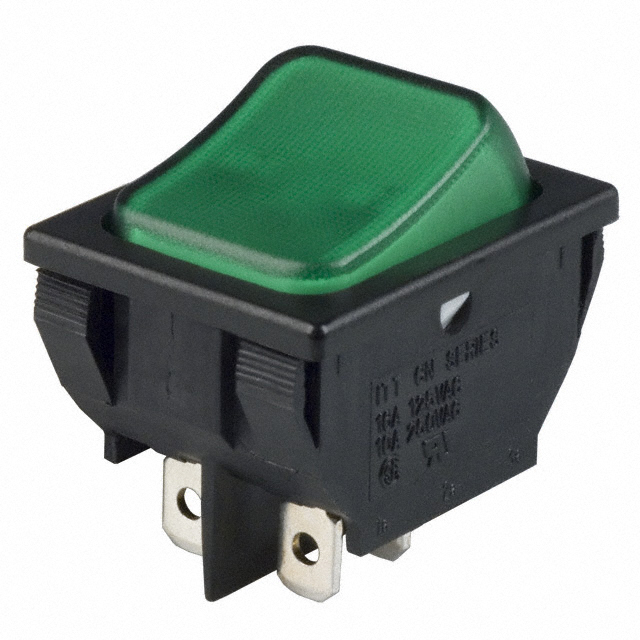

C&K’s CN series double pole power rocker switch is a quality, long-lasting switch designed for use in power supply, industrial equipment and HVAC products. Featuring optional illumination and multiple actuator and termination styles, the robust design of the CN series guarantees to make your products stand out.

Technical Specifications

Parameters and characteristics for this part

Specification	CN22J8GS405HQA8

Actuator Marking	O I
Actuator Type	Flat, Illuminated
Approval Agency	cULus
Circuit	DPST
Color	Green
Color - Actuator/Cap	Green
Current Rating	16 A
Electrical Life (Cycles)	10000 Cycles
Illumination Type	Neon
Illumination Voltage (Nominal)	250 V
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	30.4 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	22.2 mm
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	125 V

Cn0 Series Series

Part	Illumination Voltage (Nominal)	Circuit	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Illumination Type	Color	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Color - Actuator/Cap	Current Rating	Mounting Type	Actuator Type	Actuator Marking	Voltage Rating - AC	Quick Connect Size (0.187")	Termination Style	Approval Agency	Electrical Life (Cycles)	Quick Connect Size (0.250")
LITTELFUSE CN202J3RS215Q8	250 V	DPST	On-Off	85 °C	-20 °C	Neon	Red	Rectangular	22.2 mm	30.4 mm	Red	16 A	Panel Mount Snap-In	Concave (Curved) Illuminated	No Marking	125 V	0.187 in	Quick Connect	cULus	10000 Cycles
LITTELFUSE CN202J3RS215Q7	125 VAC	DPST	On-Off	85 °C	-20 °C	Neon	Red	Rectangular	22.2 mm	30.4 mm	Red	16 A	Panel Mount Snap-In	Concave (Curved) Illuminated	No Marking	125 V	0.187 in	Quick Connect	cULus
LITTELFUSE CN22J8AS405HQA8	250 V	DPST	On-Off	85 °C	-20 °C	Neon	Amber	Rectangular	22.2 mm	30.4 mm	Amber	16 A	Panel Mount Snap-In	Flat Illuminated	O I	125 V		Quick Connect	cULus	10000 Cycles	0.25 in
LITTELFUSE CN22J8GS405PQA8	250 V	DPST	On-Off	85 °C	-20 °C	Neon	Green	Rectangular	22.2 mm	30.4 mm	Green	16 A	Panel Mount Snap-In	Flat Illuminated	O	125 V		Quick Connect	cULus	10000 Cycles	0.25 in
LITTELFUSE CN202J3GS215Q8	250 V	DPST	On-Off	85 °C	-20 °C	Neon	Green	Rectangular	22.2 mm	30.4 mm	Green	16 A	Panel Mount Snap-In	Concave (Curved) Illuminated	No Marking	125 V	0.187 in	Quick Connect	cULus	10000 Cycles
LITTELFUSE CN22J3RS215HQ8	250 V	DPST	On-Off	85 °C	-20 °C	Neon	Red	Rectangular	22.2 mm	30.4 mm	Red	16 A	Panel Mount Snap-In	Concave (Curved) Illuminated	O I	125 V	0.187 in	Quick Connect	cULus
LITTELFUSE CN201J12S215Q		DPDT	On-On	85 °C	-20 °C			Rectangular	22.2 mm	30.4 mm	Black	16 A	Panel Mount Snap-In	Concave (Curved)	No Marking	125 V	0.187 in	Quick Connect	cULus	10000 Cycles
LITTELFUSE CN22J8GS305HQA8	250 V	DPST	On-Off	85 °C	-20 °C	Neon	Green	Rectangular	22.2 mm	30.4 mm	Green	16 A	Panel Mount Snap-In	Flat Illuminated	O I	125 V		Quick Connect	cULus	10000 Cycles	0.25 in
LITTELFUSE CN201J62S405QA		DPDT	On-On	85 °C	-20 °C			Rectangular	22.2 mm	30.4 mm	Black	16 A	Panel Mount Snap-In	Flat	No Marking	125 V		Quick Connect	cULus		0.25 in
LITTELFUSE CN22J8GS405PQA7	125 VAC	DPST	On-Off	85 °C	-20 °C	Neon	Green	Rectangular	22.2 mm	30.4 mm	Green	16 A	Panel Mount Snap-In	Flat Illuminated	O	125 V		Quick Connect	cULus	10000 Cycles	0.25 in
