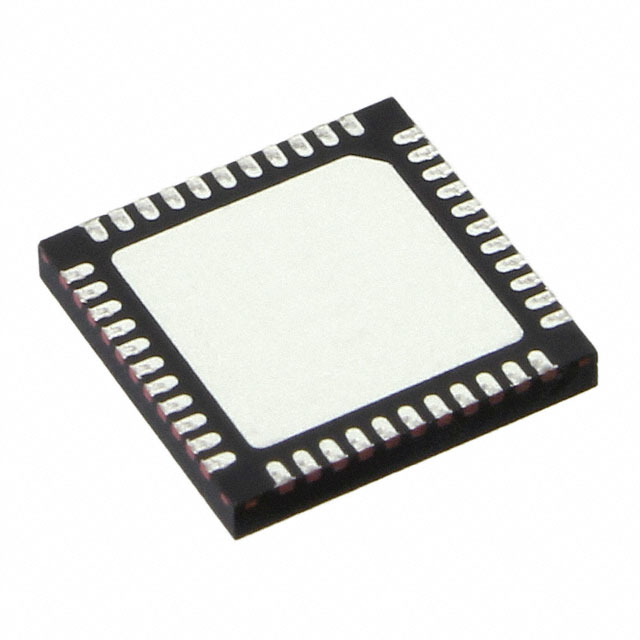

ZL8800ALBFT7A
ActiveRenesas Electronics Corporation
IC REG CTRLR BUCK PMBUS 44QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZL8800ALBFT7A
ActiveRenesas Electronics Corporation
IC REG CTRLR BUCK PMBUS 44QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL8800ALBFT7A | ZL8800 Series |
|---|---|---|
| - | - | |
| Board Type | - | Fully Populated |
| Clock Sync | True | True |
| Control Features | Current Limit, Tracking, Power Good, Enable | Current Limit, Tracking, Power Good, Enable |
| Current - Output | - | 30 A |
| Frequency - Switching | - | 512 kHz |
| Frequency - Switching [Max] | 1.33 MHz | 1.33 MHz |
| Frequency - Switching [Min] | 200 kHz | 200 kHz |
| Function | Step-Down | Step-Down |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Phases | 2 | 2 |
| Output Type | PWM Signal | PWM Signal |
| Outputs and Type | - | 2 |
| Outputs and Type | - | Non-Isolated |
| Package / Case | 44-VFQFN Exposed Pad | 44-VFQFN Exposed Pad |
| Regulator Topology | - | Buck |
| Serial Interfaces | PMBus | PMBus |
| Supplied Contents | - | Cable(s), Board(s) |
| Supplier Device Package | 44-QFN, 7x7 | 44-QFN, 7x7 |
| Synchronous Rectifier | False | False |
| Topology | Buck | Buck |
| Utilized IC / Part | - | ZL8800 |
| Voltage - Input | - | 14 V |
| Voltage - Input | - | 6.5 V |
| Voltage - Output | - | 1 - 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.02 | |
| Digi-Reel® | 1 | $ 13.02 | ||
| Tape & Reel (TR) | 250 | $ 9.61 | ||
| 500 | $ 8.99 | |||
ZL8800 Series
200KHZ~1.33MHZ 4.5V~14V QFN-44-EP(7X7) AC-DC CONTROLLERS AND REGULATORS ROHS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Topology | Clock Sync | Synchronous Rectifier | Output Configuration | Serial Interfaces | Frequency - Switching [Max] | Frequency - Switching [Min] | Output Phases | Number of Outputs | Supplier Device Package | Output Type | Mounting Type | Control Features | Function | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Frequency - Switching | Board Type | Current - Output | Supplied Contents | Regulator Topology | Main Purpose | Utilized IC / Part | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation ZL8800ALBFTK | 85 °C | -40 °C | 44-VFQFN Exposed Pad | Buck | Positive | PMBus | 1.33 MHz | 200 kHz | 2 | 2 | 44-QFN, 7x7 | PWM Signal | Surface Mount | Current Limit, Enable, Power Good, Tracking | Step-Down | ||||||||||||||
Renesas Electronics Corporation ZL8800-2CH-DEMO1Z | 1 V, 1.2 V | 14 V | 6.5 V | 512 kHz | Fully Populated | 30 A | Board(s), Cable(s) | Buck | DC/DC, Step Down | ZL8800 | 2 | Non-Isolated | |||||||||||||||||
Renesas Electronics Corporation ZL8800ALAFTK | 85 °C | -40 °C | 44-VFQFN Exposed Pad | Buck | Positive | PMBus | 1.33 MHz | 200 kHz | 2 | 2 | 44-QFN, 7x7 | PWM Signal | Surface Mount | Current Limit, Enable, Power Good, Tracking | Step-Down | ||||||||||||||
Renesas Electronics Corporation ZL8800ALBFT7A | 85 °C | -40 °C | 44-VFQFN Exposed Pad | Buck | Positive | PMBus | 1.33 MHz | 200 kHz | 2 | 2 | 44-QFN, 7x7 | PWM Signal | Surface Mount | Current Limit, Enable, Power Good, Tracking | Step-Down | ||||||||||||||
Renesas Electronics Corporation ZL8800ALBFTK |
Description
General part information
ZL8800 Series
Buck Regulator Positive Output Step-Down PMBus DC-DC Controller IC 44-QFN (7x7)
