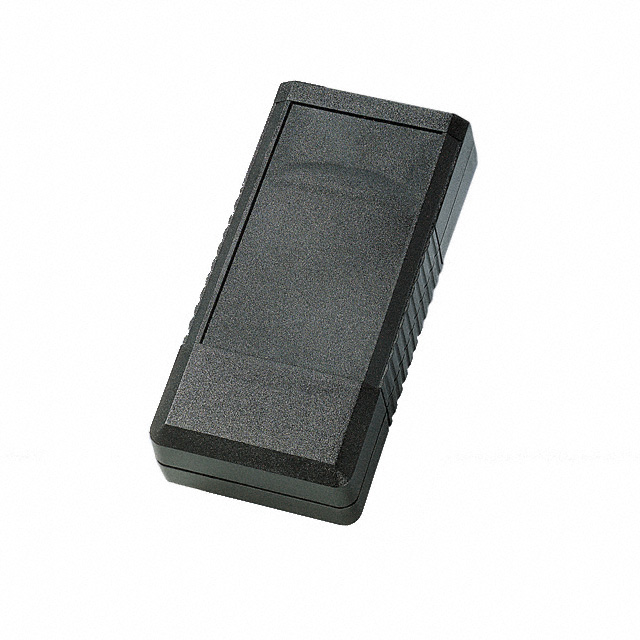

BOS 503
ActiveBopla Enclosures
BOX ABS BLACK 4.72"L X 2.36"W
BOS 503
ActiveBopla Enclosures
BOX ABS BLACK 4.72"L X 2.36"W
Description
General part information
BOS 503
Box Plastic, ABS Black Hand Held, Split Sides 4.724" L x 2.362" W (120.00mm x 60.00mm) X 0.984" (25.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | BOS 503 |
|---|---|
| Area (L x W) | 11.2 in² |
| Color | Black |
| Container Type | Box |
| Design | Split Sides, Hand Held |
| Features | Battery Compartment, 9V, PCB Supports |
| Height | 0.984 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40 |
| Size / Dimension Length | 4.724 in |
| Size / Dimension Width | 2.362 in |
| Thickness | 0.118 in |
| Weight | 0.121 lb |
