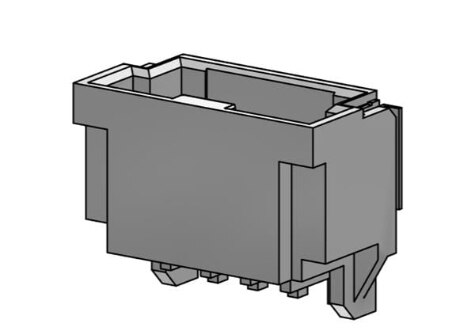

Specification	5023520403

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Latch Holder
Insulation Color	Blue
Insulation Height	0.252 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.079 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	125 V

502352 Series

Part	Insulation Height	Connector Type	Insulation Color	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Number of Positions	Mounting Type	Termination	Fastening Type	Material Flammability Rating	Insulation Material	Contact Shape	Contact Type	Shrouding	Pitch - Mating	Features	Style	Contact Material	Contact Length - Mating	Contact Finish - Post	Applications	Contact Finish Thickness - Post	Voltage Rating	Voltage Rating (Type)	Current Rating	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)
Molex 5023521010	0.252 in	Header	Natural	1	Gold	All	10	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy
Molex 5023520900	0.252 in	Header	Natural	1	Tin	All	9	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy
Molex 5023520400	0.252 in	Header	Natural	1	Tin	All	4	Right Angle Surface Mount	Solder	Latch Lock	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy	0.136 in	Tin	Automotive Industrial
Molex 5023520603	0.252 in	Header	Blue	1	Tin	All	6	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in		Board Cable/Wire	Copper Alloy		Gold		39.4 µin	125 V	DC	0 A	Varies by Wire Gauge	-40 °C	105 °C
Molex 5023521510	0.252 in	Header	Natural	1	Gold	All	15	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520510	0.252 in	Header	Natural	1	Gold	All	5	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520810	0.252 in	Header	Natural	1	Gold	All	8	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520402	0.252 in	Header	Red	1	Tin	All	4	Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in		Board Cable/Wire	Copper Alloy		Gold		39.4 µin	125 V	DC	0 A	Varies by Wire Gauge	-40 °C	105 °C
Molex 5023521410	0.252 in	Header	Natural	1	Gold	All	14	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520300	0.252 in	Header	Natural	1	Tin	All	3	Right Angle Surface Mount	Solder	Latch Lock	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy	0.136 in	Tin
