391-098-520-203

Active

EDAC Inc.

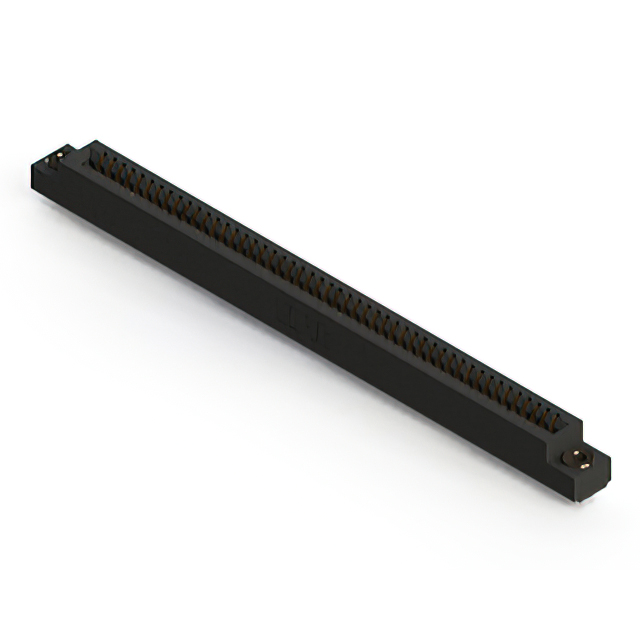

CONN EDGE DUAL FMALE 98POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

391-098-520-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 98POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-098-520-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	98
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

391-098 Series

Part	Contact Type	Contact Finish	Termination Rows	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Mounting Type	Gender	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Features	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Read Out	Card Type	Contact Material
EDAC Inc. 391-098-556-204	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic	Card Extender	2	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-524-204	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic		2	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-524-201	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic		2				98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-556-207	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic	Card Extender	2		Flush Mount M3 Threaded Insert Top Opening		98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-556-201	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Board Edge Straddle Mount	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic	Card Extender	2				98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-524-208	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic		2		4-40 Flush Mount Threaded Insert Top Opening		98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-560-204	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic	Card Extender	2	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-555-201	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Board Edge Straddle Mount	Female	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic	Card Extender	2				98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-520-203	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic		2	2.95 mm	Floating Bobbin Flush Mount	0.116 in	98	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 391-098-560-207	Semi Bellows	Gold	2	Black	-40 °C	105 ░C	2.54 mm	0.1 in	Through Hole	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	49	10 Áin	0.25 Ám	Polyester Thermoplastic	Card Extender	2		Flush Mount M3 Threaded Insert Top Opening		98	Dual	Non Specified - Dual Edge	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.63

Description

General part information

391-098 Series

98 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
