2790428
ObsoletePhoenix Contact

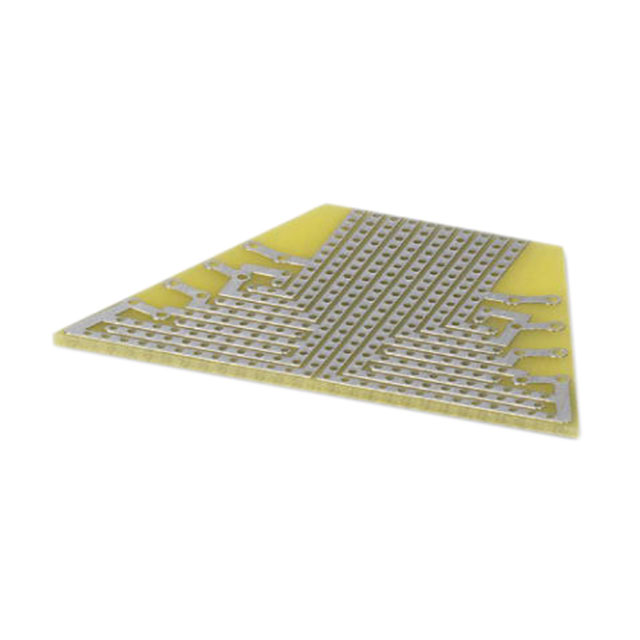

BREADBOARD GENERAL PURPOSE NPTH
2790428
ObsoletePhoenix Contact
BREADBOARD GENERAL PURPOSE NPTH
Description
General part information
2790428
Breadboard, General Purpose Non-Plated Through Hole (NPTH) Custom 7.5mm, 5.1mm, 4.6mm, 1.9mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2790428 |
|---|---|
| Circuit Pattern | Custom |
| Hole Diameter | 0.051 in |
| Pitch | 1.9mm, 7.5mm, 5.1mm, 4.6mm |
| Pitch (Option 1) | 7.5 mm |
| Pitch (Option 2) | 5.1 mm |
| Pitch (Option 3) | 4.6 mm |
| Pitch (Option 4) | 1.9 mm |
| Plating | Non-Plated Through Hole (NPTH) |
| Proto Board Type | General Purpose, Breadboard |
| Size / Dimension Length | 2.81 in |
| Size / Dimension Width | 1.89 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
