ATCA-06-391M-V
ActiveAbracon LLC
FIXED IND 390UH 4A 88 MOHM TH
ATCA-06-391M-V
ActiveAbracon LLC
FIXED IND 390UH 4A 88 MOHM TH
Description
General part information
ATCA-06-391M-V

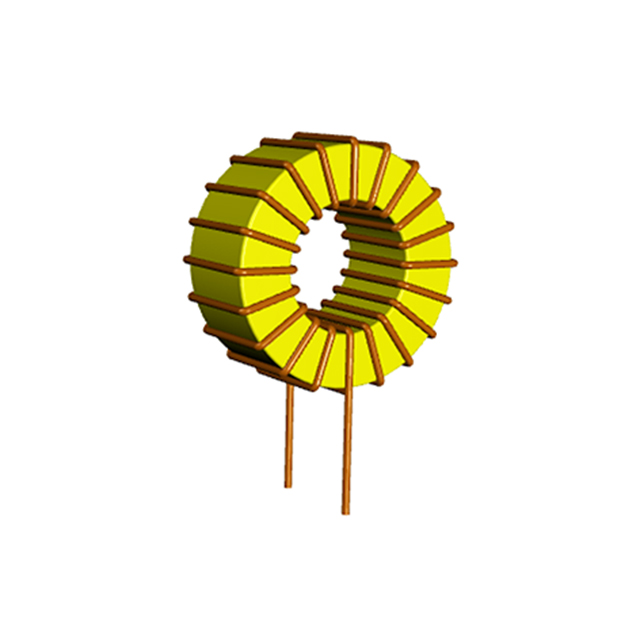

390 µH Unshielded Toroidal Inductor 4 A 88mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | ATCA-06-391M-V |
|---|---|
| Current Rating | 4 A |
| DC Resistance (DCR) (Max) | 88 mOhm |
| Inductance | 390 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 1.26 in |
| Size / Dimension Width | 0.63 in |
| Tolerance | 20 % |
| Type | Toroidal |
