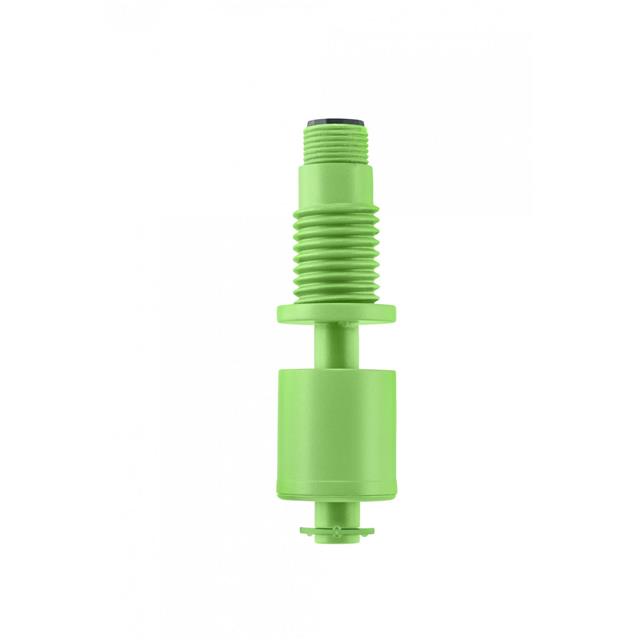

RSF107HNP

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF107HNP

Current	1 A
Material - Housing & Prism [custom]	Polyvinylidene Fluoride (PVDF)
Minimum Liquid Specific Gravity [Min]	0.95
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Type	Liquid
Voltage Rating	300 VDC, 300 VAC

Part	Output Configuration	Minimum Liquid Specific Gravity [Min]	Mounting Type	Material - Housing & Prism [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage Rating	Current
Sensata Technologies RSF107HNP	SPST-NC/NO	0.95	M16x2 Thread Panel Mount	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C	Liquid	300 VDC 300 VAC	1 A
Sensata Technologies RSF107Y100GN	SPST-NC/NO	0.95	M16x2 Thread Panel Mount	Polyvinylidene Fluoride (PVDF)	105 ░C	-10 °C	Liquid	300 VDC 300 VAC	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 63.91

General part information

Liquid Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread

Technical documentation and resources

No documents available
