500TYSS104
ActiveDelta Electronics
LINE FILTER 480VAC CHASSIS
500TYSS104
ActiveDelta Electronics
LINE FILTER 480VAC CHASSIS
Description
General part information
500TYSS104

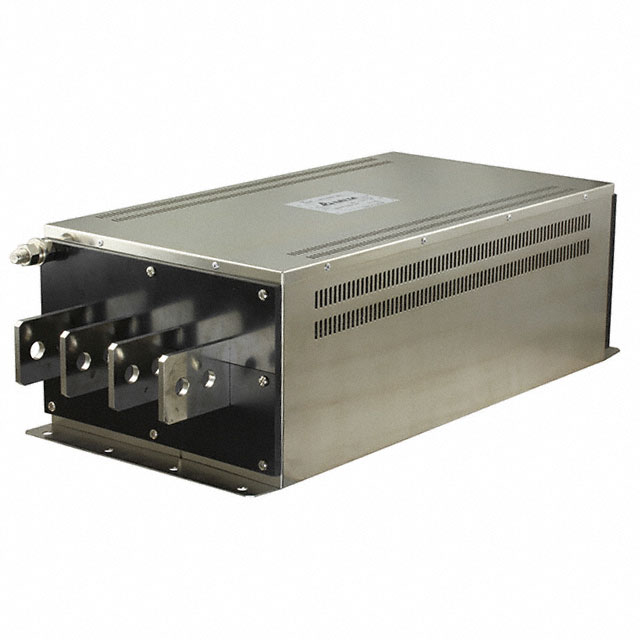

Three Phase (Wye) EMC/EMI Line Filter 480V 50/60Hz Single Stage Terminal Post
Technical Specifications
Parameters and characteristics for this part
| Specification | 500TYSS104 |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Filter Subtype | Wye |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 3 µH |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Post |
| Voltage - Rated AC | 480 V |
