HIP2123FRTAZ

Active

Intersil

HALF BRIDGE BASED MOSFET DRIVER

Search across all available documentation for this part.

Active

Intersil

HALF BRIDGE BASED MOSFET DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	HIP2123FRTAZ

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	2 A
Current - Peak Output (Source, Sink) [custom]	2 A
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]	114 V
Input Type	Inverting
Logic Voltage - VIL, VIH	2.2 V, 1.4 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

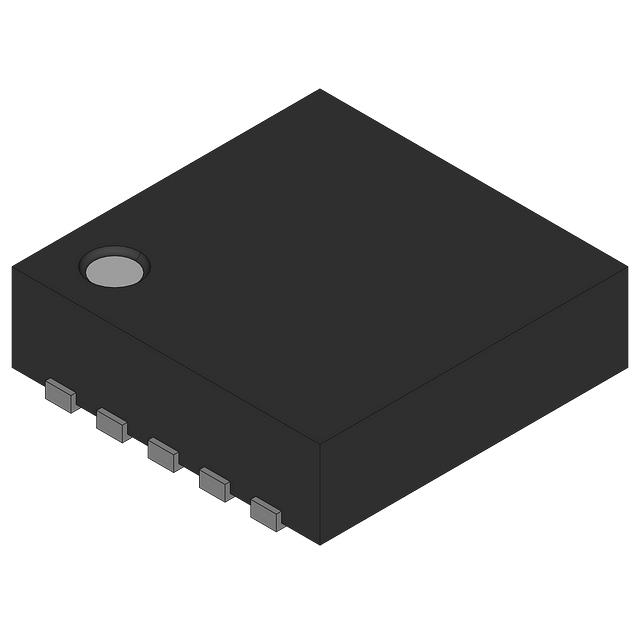

Package / Case	10-WDFN Exposed Pad
Rise / Fall Time (Typ) [custom]	10 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	10-TDFN (4x4)
Voltage - Supply [Max]	14 V
Voltage - Supply [Min]	8 V

HALF BRIDGE BASED MOSFET DRIVER

Part	Channel Type	Number of Drivers	Supplier Device Package	Package / Case	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Driven Configuration	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Logic Voltage - VIL, VIH	High Side Voltage - Max (Bootstrap) [Max]	Mounting Type
Intersil HIP2123FRTAZ	Independent	2	10-TDFN (4x4)	10-WDFN Exposed Pad	N-Channel MOSFET	2 A	2 A	8 V	14 V	Half-Bridge	10 ns	10 ns	Inverting	-55 °C	150 °C	1.4 V, 2.2 V	114 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	83	$ 3.64

General part information

Half-Bridge Gate Driver IC Inverting 10-TDFN (4x4)
