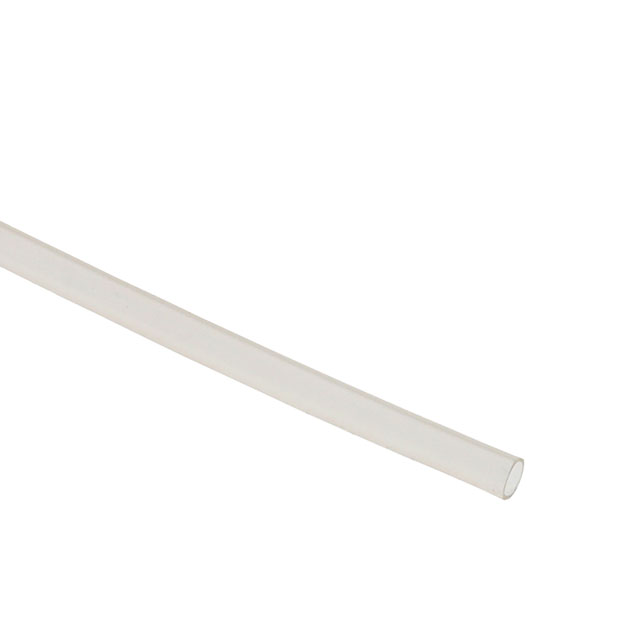

A2 1/16 CLEAR SPL

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE A2 - HEAT-SHRINK FEET

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE A2 - HEAT-SHRINK FEET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.063" (1.60mm) 2 to 1 Clear Enter Number of Feet in Order Quantity

Specification	A2 1/16 CLEAR SPL	A2 1/16 Series

Color	Clear	Clear
Inner Diameter - Recovered [diameter]	0.79 mm	0.79 mm
Inner Diameter - Recovered [diameter]	0.031 in	0.031 in
Inner Diameter - Supplied [diameter]	0.063 in	0.063 - 0.079 in
Inner Diameter - Supplied [diameter]	1.6 mm	1.6 - 2.01 mm
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1.22 m
Length	-	4 ft
Material	Halogen Free, Polyolefin (PO)	Halogen Free, Polyolefin (PO), Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.43 mm	0.43 mm
Recovered Wall Thickness	0.017 in	0.017 in
Shrink Temperature	110 °C	110 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	1000.7 ft	1000.7 ft
Spool Size	305 m	305 m
Type	Tubing, Flexible	Tubing, Flexible

Part	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Material	Spool Size	Spool Size	Shrink Temperature	Color	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]
Sumitomo Electric Interconnect Products, Inc. A2 1/16 CLEAR SPL	0.43 mm	0.017 in	2 to 1	0.063 in	1.6 mm	Enter Number of Feet in Order Quantity	Halogen Free, Polyolefin (PO)	1000.7 ft	305 m	110 °C	Clear	Tubing, Flexible	135 °C	-55 °C	0.79 mm	0.031 in
Sumitomo Electric Interconnect Products, Inc. A2 1/16 CLEAR 4FT	0.43 mm	0.017 in	2 to 1	0.079 "	2.01 mm		Polyolefin (PO), Irradiated, Halogen Free			110 °C	Clear	Tubing, Flexible	135 °C	-55 °C	0.79 mm	0.031 in	1.22 m	4 ft
