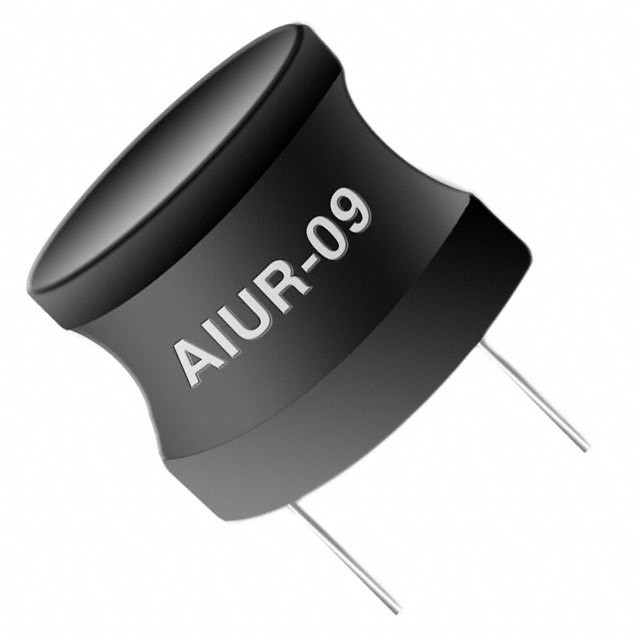

AIUR-09-470M
ActiveAbracon LLC
FIXED IND 47UH 1.7A 180 MOHM TH
AIUR-09-470M
ActiveAbracon LLC
FIXED IND 47UH 1.7A 180 MOHM TH
Description
General part information
AIUR-09-470M
47 µH Unshielded Drum Core, Wirewound Inductor 1.7 A 180mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | AIUR-09-470M |
|---|---|
| Current Rating | 1.7 A |
| DC Resistance (DCR) (Max) | 180 mOhm |
| Height - Seated (Max) | 0.256 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
