13N88-213E.1

Active

Portescap

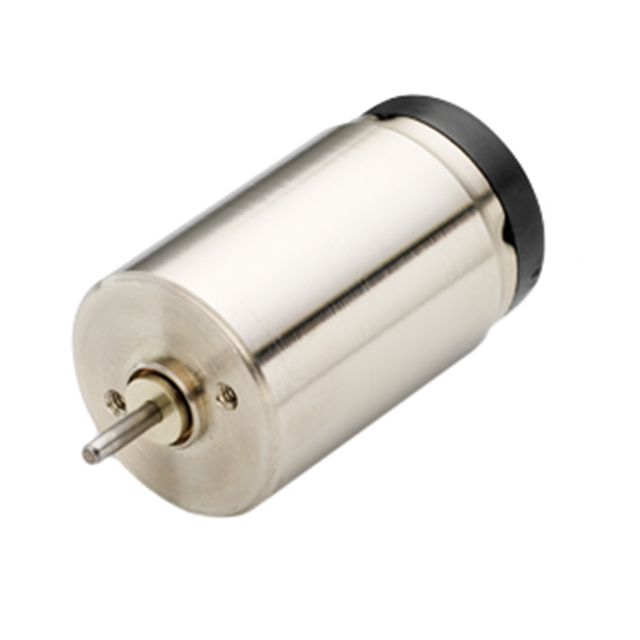

STANDARD MOTOR 12300 RPM 6V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 12300 RPM 6V

Technical Specifications

Parameters and characteristics for this part

STANDARD MOTOR 12300 RPM 6V

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Motor Type	Power - Rated	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Function	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Termination Style	Weight	Weight	RPM
Portescap 13N88-213E.1	0.059 in	1.5 mm	6 VDC	Brushed	2.5 W	DC Motor	-30 ░C	85 °C	13 mm	0.511 in	Standard	6.2 mm	0.244 in	3.03 mNm	0.429 oz-in	Solder Tab	0.04 lb	18.14 g	12300 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 12300 RPM 2.5W 6VDC

Technical documentation and resources
