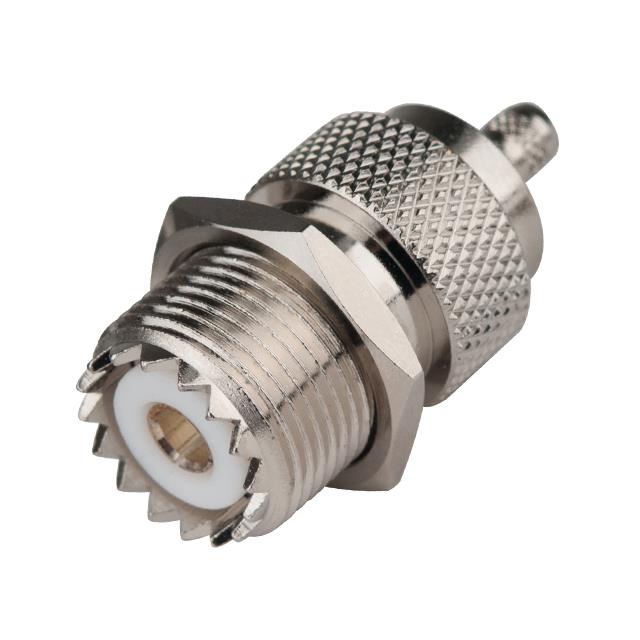

RFU-527-TC1
ObsoleteRF Industries
UHF FEMALE CRIMP; 50 OHMS
RFU-527-TC1
ObsoleteRF Industries
UHF FEMALE CRIMP; 50 OHMS
Description
General part information
RFU-527-TC1
UHF Connector Jack, Female Socket Non-Constant Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | RFU-527-TC1 |
|---|---|
| Body Finish | Nickel |
| Cable Group | 55A, 142, 142A, 55B, 223, Belden 7806A, 400, 142B, 84142, RG-55, 83242 |
| Center Contact Plating | Silver |
| Connector Style | UHF |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 300 MHz |
| Housing Color | Silver |
| Impedance | Non-Constant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
