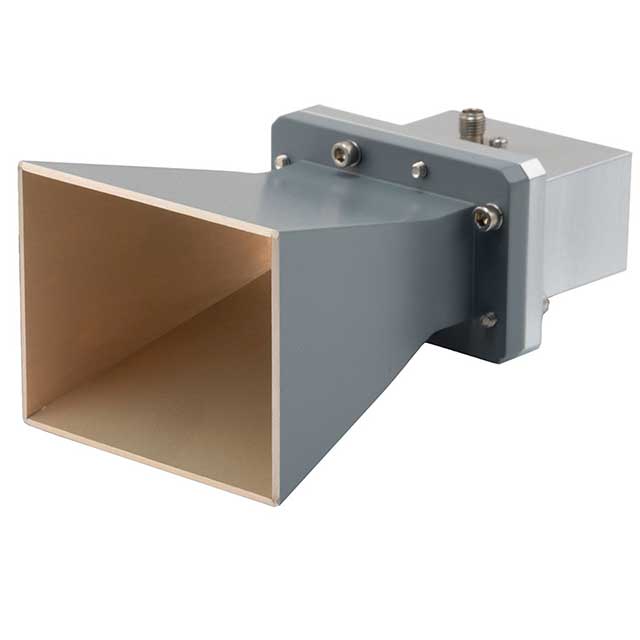

PEWAN187-10SF
ActivePasternack
WR187 GAIN HORN 3.95-5.85GHZ 10D
PEWAN187-10SF
ActivePasternack
WR187 GAIN HORN 3.95-5.85GHZ 10D
Description
General part information
PEWAN187-10SF
RF ANTENNA Horn SMA Female Waveguide Flange Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWAN187-10SF |
|---|---|
| Antenna Type | Horn |
| Frequency (Center/Band) | 4.9 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 4 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 3 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 3.95 GHz |
| Gain | 10 dBi |
| Height (Max) | 5.206 in |
| Mounting Type | Waveguide Flange Mount |
| Number of Bands | 1 |
| Termination Type | SMA Female |
| VSWR | 1.3 |
