700TN001O1248D2060A
ActiveCurtis Instruments Inc.
COUNTER LCD 6 CHAR 20-60V PNL MT
700TN001O1248D2060A
ActiveCurtis Instruments Inc.
COUNTER LCD 6 CHAR 20-60V PNL MT
Description
General part information
700TN001O1248D2060A

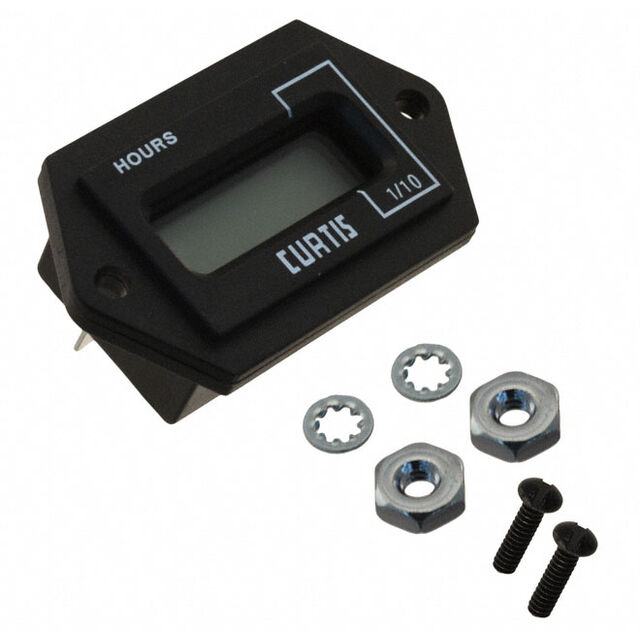

Time Counter (Hour Meter) 20 ~ 60VAC, 12 ~ 48VDC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 700TN001O1248D2060A |
|---|---|
| Display Characters - Height | 0.196 in |
| Display Type | LCD - Black Characters |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Input Type | Voltage |
| Mounting Type | Panel Mount |
| Number of Characters Per Row | 6 characters |
| Operating Mode | Up |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Length | 36.8 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 24.1 mm |
| Quick Connect Size (0.187") | 0.187 in |
| Reset | Non-Resettable |
| Termination Style | Quick Connect |
| Time Format (Hours) | 99999.9 hrs |
| Type | Time Counter (Hour Meter) |
| Voltage - Supply (Range 1 Maximum) | 60 VAC |
| Voltage - Supply (Range 1 Minimum) | 20 VAC |
| Voltage - Supply (Range 2 Maximum) | 48 VDC |
| Voltage - Supply (Range 2 Minimum) | 12 VDC |
