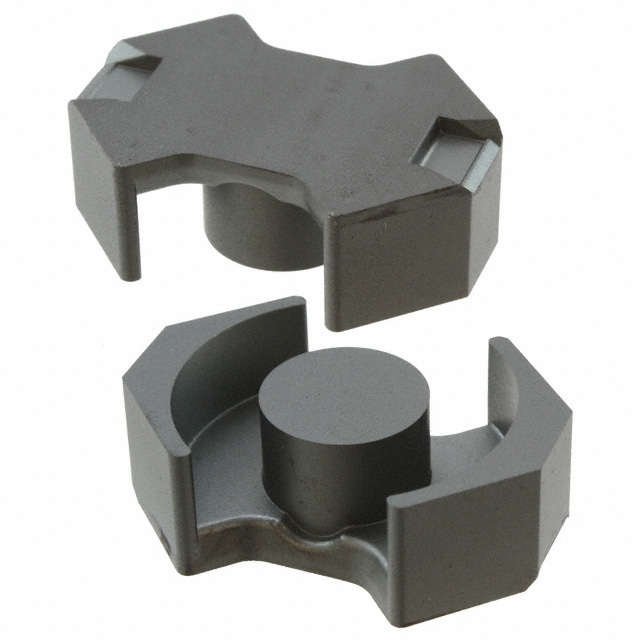

Specification	B65813J0250A041

Core Factor (ΣI/A) mm⁻¹	0.45 mm⁻¹
Core Type	RM
Effective Area (Ae)	98 mm²
Effective Length (le)	44 mm
Effective Magnetic Volume (Ve)	4310 mm³
Effective Permeability (µe)	89
Finish	Uncoated
Gap	Gapped
Height	0.368 in
Inductance Factor (Al)	250 nH
Initial Permeability (µi)	2800
Length	1.122 in
Material	N41
Minimum Core Cross Section (Amin) (mm²)	90 mm²
Package Name	RM 10
Tolerance	3 %
Width	0.531 in
