9111-12-S

Active

E-Z-Hook

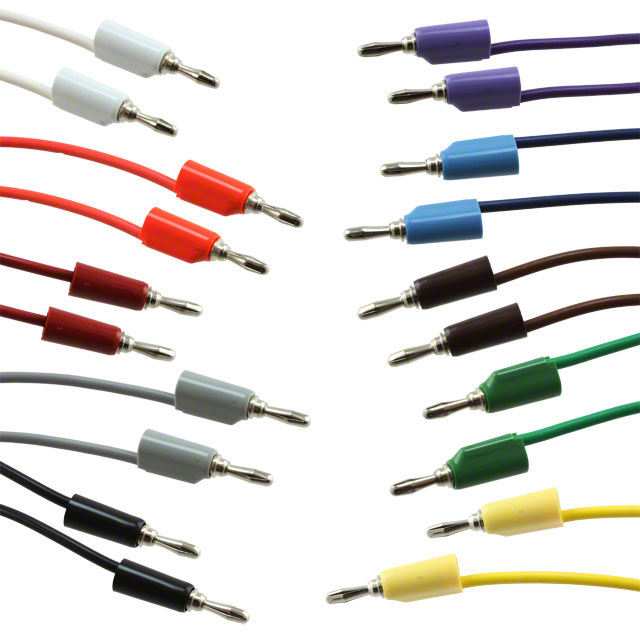

TEST LEAD BANANA/BANA 12" SET/10

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD BANANA/BANA 12" SET/10

Technical Specifications

Parameters and characteristics for this part

Specification	9111-12-S

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Banana Plug, Single, Stackable
Cable Length	12 in
Cable Length	304.8 mm
Configuration	Banana to Banana
Contents	Multiple Colors
Contents	10 Leads
Current Rating (Amps)	4 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

TEST LEAD BANANA/BANA 12" SET/10

Part	Contents	Contents	Stacking Method	Material - Insulation	Type	Cable Length	Cable Length	Configuration	Voltage - Rated	Voltage - Rated	2nd Connector	1st Connector	Current Rating (Amps)	Wire Gauge
E-Z-Hook 9111-12-S	Multiple Colors	10 Leads	Front Stacking	Poly-Vinyl Chloride (PVC)	Patch Cord	12 in	304.8 mm	Banana to Banana	5 kV	5 kV	Banana Plug, Single, Stackable	Banana Plug, Single, Stackable	4 A	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 5000V (5kV)
