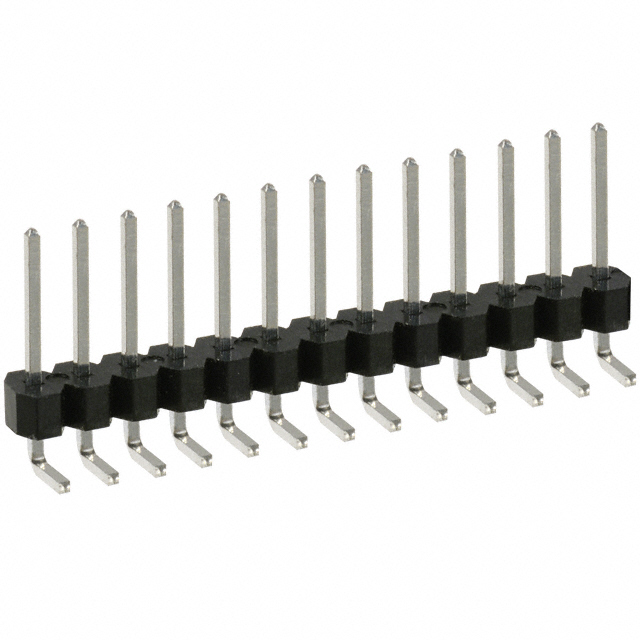

PEC13SGAN

Active

Sullins Connector Solutions

TIN 3A RIGHT-ANGLE POLICY 3.56MM 13P 8.08MM -65℃~+125℃ 2.54MM 2.54MM SINGLE ROW PHOSPHOR BRONZE BLACK PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

PEC13SGAN

Active

Sullins Connector Solutions

TIN 3A RIGHT-ANGLE POLICY 3.56MM 13P 8.08MM -65℃~+125℃ 2.54MM 2.54MM SINGLE ROW PHOSPHOR BRONZE BLACK PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC13SGAN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC13 Series

Part	Style	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Shape	Number of Positions	Contact Finish - Post	Termination	Insulation Color	Shrouding	Overall Contact Length	Overall Contact Length	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]
Sullins Connector Solutions PEC13DAGN	Board to Board Cable	18.29 mm	0.72 "	2	0.1 in	2.54 mm	All	Through Hole	Breakaway Header	2.54 mm	0.1 in	0.23 in	5.84 mm	Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	26	Tin	Solder	Black	Unshrouded	1.05 in	26.67 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0
Sullins Connector Solutions PEC13SBAN	Board to Board Cable			1	0.14 in	3.56 mm	All	Through Hole Right Angle	Breakaway Header			0.23 in	5.84 mm	Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	13	Tin	Solder	Black	Unshrouded			125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0	2.54 mm	0.1 in
Sullins Connector Solutions PEC13SABN	Board to Board Cable			1	0.1 in	2.54 mm	All	Through Hole	Breakaway Header			0.23 in	5.84 mm	Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	13	Tin	Solder	Black	Unshrouded	0.56 in	14.22 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0	5.84 mm	0.23 in
Sullins Connector Solutions PEC13SGAN	Board to Board Cable			1	0.14 in	3.56 mm	All	Through Hole Right Angle	Breakaway Header			0.318 "		Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	13	Tin	Solder	Black	Unshrouded			125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0	2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PEC13DAHN	Board to Board Cable	20.83 mm	0.82 in	2	0.1 in	2.54 mm	All	Through Hole	Breakaway Header	2.54 mm	0.1 in	0.23 in	5.84 mm	Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	26	Tin	Solder	Black	Unshrouded	1.15 in	29.21 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0
Sullins Connector Solutions PEC13SFEN	Board to Board Cable			1	0.1 in	2.54 mm	All	Through Hole	Breakaway Header			0.318 "		Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	13	Tin	Solder	Black	Unshrouded	0.938 in	23.83 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0	13.21 mm	0.52 "	8.08 mm
Sullins Connector Solutions PEC13SAAN	Board to Board Cable	3.05 mm	0.12 in	1	0.1 in	2.54 mm	All	Through Hole	Breakaway Header			0.23 in	5.84 mm	Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	13	Tin	Solder	Black	Unshrouded	0.45 "	11.43 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0
Sullins Connector Solutions PEC13SFCN	Board to Board Cable	8.13 mm	0.32 in	1	0.1 in	2.54 mm	All	Through Hole	Breakaway Header			0.318 "		Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	13	Tin	Solder	Black	Unshrouded	0.738 "	18.75 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0			8.08 mm
Sullins Connector Solutions PEC13SFDN	Board to Board Cable	10.67 mm	0.42 in	1	0.1 in	2.54 mm	All	Through Hole	Breakaway Header			0.318 "		Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	13	Tin	Solder	Black	Unshrouded	0.838 in	21.29 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0			8.08 mm
Sullins Connector Solutions PEC13DAEN	Board to Board Cable			2	0.1 in	2.54 mm	All	Through Hole	Breakaway Header	2.54 mm	0.1 in	0.23 in	5.84 mm	Phosphor Bronze	2.54 çm	100 çin	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	3 A	Square	26	Tin	Solder	Black	Unshrouded	0.85 in	21.59 mm	125 °C	-65 ░C	Push-Pull	Male Pin	UL94 V-0	13.21 mm	0.52 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.52
		10	$ 1.16
		100	$ 0.89
		500	$ 0.75
		1000	$ 0.70
		5000	$ 0.64
LCSC	Piece	1	$ 0.84
		200	$ 0.33
		500	$ 0.32
		1000	$ 0.31

Description

General part information

PEC13 Series

Connector Header Through Hole, Right Angle 13 position 0.100" (2.54mm)
