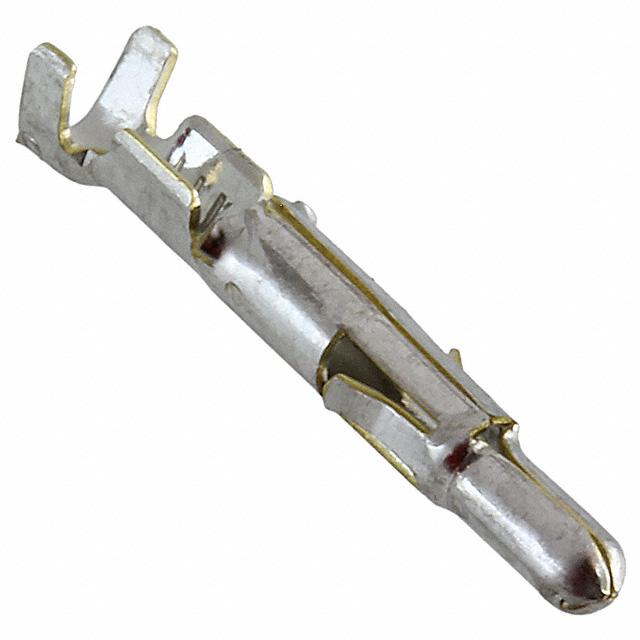

926896-1

Active

TE Connectivity AMP Connectors

CONN PIN 18-24AWG TIN CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PIN 18-24AWG TIN CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PIN 18-24AWG TIN CRIMP

Part	Type	Contact Termination	Contact Finish	Pin or Socket	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 926896-3	Stamped	Crimp	Tin	Pin	Brass	24 AWG	17.5 AWG
TE Connectivity AMP Connectors 926896-1	Stamped	Crimp	Tin	Pin	Brass	24 AWG	17.5 AWG
TE Connectivity AMP Connectors 926896-7	Stamped	Crimp	Gold	Pin	Brass	24 AWG	17.5 AWG	31.5 µin	0.8 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact Tin Crimp 18-24 AWG Stamped
