EGG.3B.665.ZZM

Active

LEMO

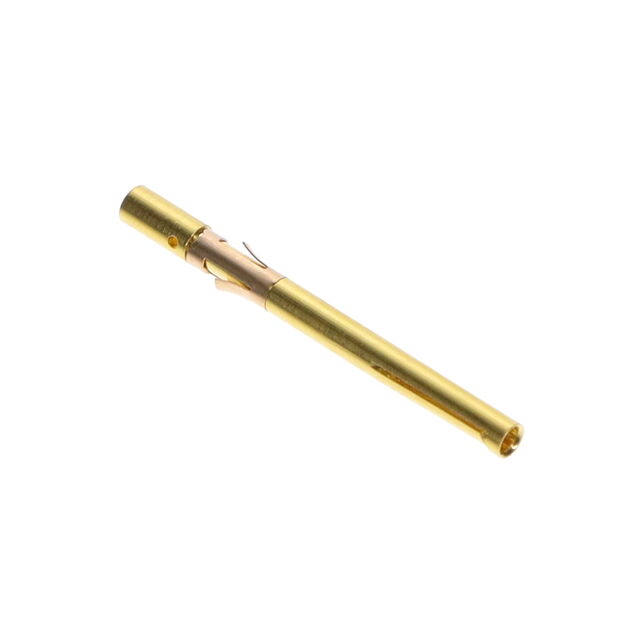

CONTACT SOCKET 18-20AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.3B.665.ZZM

Active

LEMO

CONTACT SOCKET 18-20AWG CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.25
		10	$ 4.77
		25	$ 4.52
		50	$ 4.41
		100	$ 4.20
		250	$ 3.68
		500	$ 3.57
		1000	$ 3.05
		2500	$ 2.84

Description

General part information

EGG.3B Series

Socket Contact 18-20 AWG Size 1.3mm Crimp Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.3B.665.ZZM	EGG.3B Series

Color	-	Silver
Connector Type	-	Receptacle, Female Sockets, Female Sockets, Insert, Insert Shell
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	1.3 mm	0.7 - 3 mm
Contact Termination	Crimp	Crimp
Contact Type	Socket	Socket, Crimp and Solder Cup
Current Rating (Amps)	-	3.5 - 35 A
Fastening Type	-	Push-Pull, Detent Lock
Features	-	Insert Only, Requires Shell
Housing Color	-	Black
Ingress Protection	-	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Note	-	Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included; Insert Not Included
Number of Positions	-	16
Number of Positions	-	2 - 30
Number of Positions	-	1 - 2
Number of Positions	-	12
Number of Positions	-	4 - 16
Number of Positions	-	2
Number of Positions	-	2
Operating Temperature	-	-55 °C
Operating Temperature	-	250 °C
Orientation	-	G
Primary Material	-	Metal
Shell Finish	-	Chrome, Anodized
Shell Material	-	Brass, Aluminum Alloy
Shell Size - Insert	-	23 - 856
Shielding	-	Unshielded, Shielded
Termination	-	Solder, Crimp
Type	Signal, Machined	Signal, Machined, For Female Sockets
Wire Gauge or Range - AWG [Max]	20 AWG	18 - 32 AWG
Wire Gauge or Range - AWG [Min]	18 AWG	14 - 28 AWG
Wire Gauge or Range - mm˛	-	0.04 mm˛
Wire Gauge or Range - mm˛	-	0.09 mm˛
Wire Gauge or Range - mm² [Max]	1 mm²	0.09 - 1.5 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²	0.04 - 1 mm²

EGG.3B Series

CONTACT SOCKET 18-20AWG CRIMP

Part	Contact Material	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Size	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Type	Contact Finish	Type	Note	Ingress Protection	Contact Shape	Shielding	Shell Size - Insert	Number of Positions	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Feature	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Primary Material	Current Rating (Amps)	Color	Connector Type	Insert Material	Features	Termination	Mounting Type	Housing Color	Number of Positions [custom]	Number of Positions [custom]
LEMO EGG.3B.665.ZZM	Bronze	Crimp	1 mm²	0.5 mm²	1.3 mm	18 AWG	20 AWG	Socket	Gold	Machined, Signal
LEMO EGG.3B.416.YL					0.9 mm			Crimp and Solder Cup		For Female Sockets	Note: Contacts Not Included; Insert Only, Requires Shell	IP50	Circular	Unshielded	416	16	G	-55 °C	250 °C
LEMO EGG.3B.410.YL					1.3 mm			Crimp and Solder Cup		For Female Sockets	Note: Contacts Not Included; Insert Only, Requires Shell	IP50	Circular	Unshielded	410		G	-55 °C	250 °C	10
LEMO EGG.3B.306.CLL	Bronze											IP50		Shielded	306		G	-55 °C	250 °C	6	Bulkhead - Rear Side Nut	UL94 V-0	Push-Pull	Gold	Brass	59 Áin	1.5 Ám	Chrome	Metal	17 A	Silver	Receptacle, Female Sockets	Polyetheretherketone (PEEK)
LEMO EGG.3B.305.ZLL	Bronze											IP50		Shielded	305		G	-55 °C	250 °C			UL94 V-0		Gold		59 Áin	1.5 Ám			19 A		Female Sockets, Insert	Polyetheretherketone (PEEK)	Insert Only, Requires Shell
LEMO EGG.3B.326.ZLL	Bronze											IP50		Shielded	326		G	-55 °C	250 °C	26		UL94 V-0		Gold		59 Áin	1.5 Ám			4 A		Female Sockets, Insert	Polyetheretherketone (PEEK)	Insert Only, Requires Shell
LEMO EGG.3B.320.CLN	Bronze											IP50		Shielded	320		G	-55 °C	250 °C	20	Bulkhead - Rear Side Nut	UL94 V-0	Push-Pull	Gold	Brass	59 Áin	1.5 Ám	Chrome	Metal	6 A	Silver	Receptacle, Female Sockets	Polyetheretherketone (PEEK)		Solder	Panel Mount, Through Hole
LEMO EGG.3B.200.LC											Contacts Not Included; Insert Not Included	IP50		Shielded			G	-55 °C	250 °C		Bulkhead - Rear Side Nut		Detent Lock, Push-Pull		Aluminum Alloy			Anodized				Insert Shell					Black
LEMO EGG.3B.812.CLL1	Bronze											IP50		Shielded	812		G	-55 °C	250 °C		Bulkhead - Rear Side Nut	UL94 V-0	Push-Pull	Gold	Brass	59 Áin	1.5 Ám	Chrome	Metal	9 A	Silver	Receptacle, Female Sockets	Polyetheretherketone (PEEK)					1	12
LEMO EGG.3B.404.YL					2 mm			Crimp and Solder Cup		For Female Sockets	Note: Contacts Not Included; Insert Only, Requires Shell	IP50	Circular	Unshielded	404		G	-55 °C	250 °C	4
